Victron Energy SmartShunt SHU050210050 Battery monitoring
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

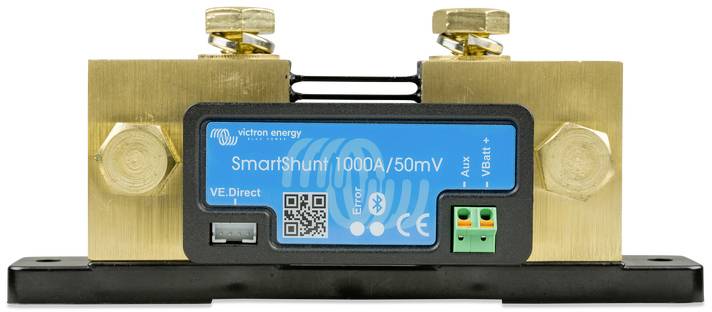

Victron Energy SmartShunt 1000A/50mV
- Measures voltage of a second battery, temperature or center point
- VE.Direct communication connection
- Meets numerous standards
Technical specifications
- Voltage range power supply 6.5 - 70 V/DC
- Power consumption 1 mA
- Input voltage range, additional battery 6.5 - 70 V/DC
- Battery capacity (Ah) 1 - 9999 Ah
- Operating temperature range -40 +50°C (-40 - 120 °F)
- Temperature measuring range -20 +50°C.
- Protection class IP21
- Product type
Battery monitoring
- Length
120 mm
- Width
68 mm
- Height
54 mm
- Type
1000A/50mV
- Dim
(L x W x H) 120 x 68 x 54 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2497254 Victron Energy SmartShunt SHU050210050 Battery monitoring
User & Safety Instructions
User & Safety Instructions 2497254 Victron Energy SmartShunt SHU050210050 Battery monitoring
Conformity certificate
Conformity certificate 2497254 Victron Energy SmartShunt SHU050210050 Battery monitoring
Description
The SmartShunt is an all-in-one battery monitor, only without display. Your phone acts as a display. The SmartShunt connects via Bluetooth with the VictronConnect app on your phone (or tablet) and you can comfortably read all monitored battery parameters, such as charging status, remaining time, history information and much more. Alternatively, the SmartShunt can be connected and read by a GX device. The connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially for systems that require battery monitoring but require less cabling and clutter. The SmartShunt is equipped with Bluetooth, a VE. Direct connection and a connection that can be used to monitor a second battery, monitor the center point or connect a temperature sensor.
This text is machine translated.
This text is machine translated.
Scope of delivery
- SmartShunt
- 2 cables with fuse, for +/-connection and starter battery or center point connection
- User manual.
