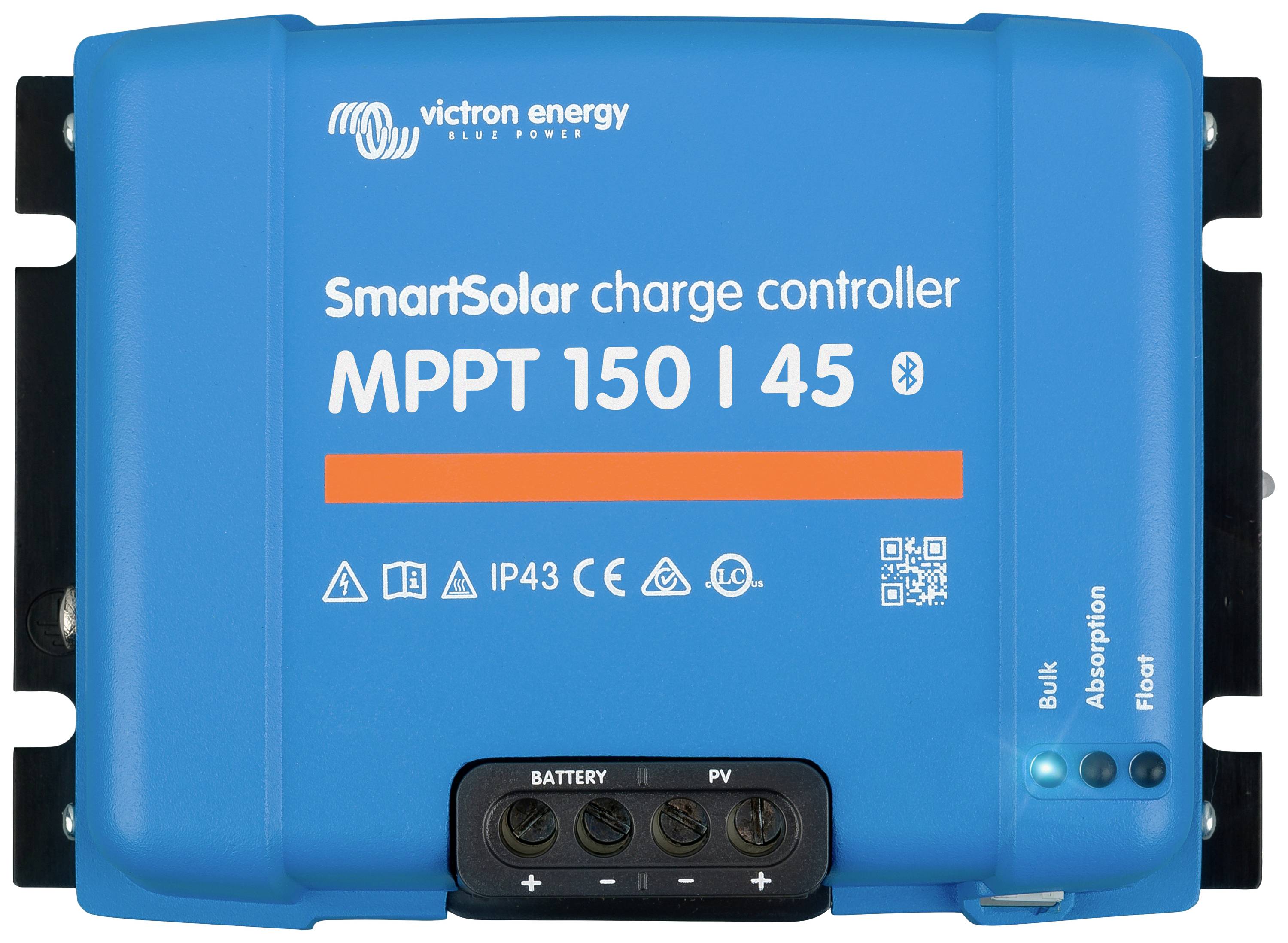

Victron Energy SmartSolar 150/45 Charge controller MPPT 12 V, 24 V, 48 V 45 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller MPPT Victron SmartSolar 150/45
- 45 A charging current
- 12/24/48 VDC
- Maximum PV-Idle voltage 150 V
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
48 V
- Module power (max.)
2600 W
- Charging current (max.)
45 A
- Own power consumption
35 mA
- Control type
MPPT
- Dim
(L x W x H) 186 x 186 x 130 mm
- Weight
1.25 kg
- Width
186 mm
- Height
130 mm
- Length
186 mm
- Depth
70 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059079 Victron Energy SmartSolar 150/45 Charge controller MPPT 12 V, 24 V, 48 V 45 A
User & Safety Instructions
User & Safety Instructions 3059079 Victron Energy SmartSolar 150/45 Charge controller MPPT 12 V, 24 V, 48 V 45 A
Description
By using the latest and fastest technology, the SmartSolar maximizes the energy generation through the solar modules and directs them in an intelligent way, in order to charge the batteries fully in as short a time as possible. The SmartSolar maintains the functionality of the battery and in this way extends its life.
The SmartSolar charge controller even recharges a strongly discharged battery. It can operate with a battery voltage of only 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
By continuously monitoring the voltage and current output of your Solar(PV) modules, the technology of the MPPT ensures that really all the power available is taken from the modules and stored. The advantage of this is most noticeable when the sky is partially covered and the light intensity changes constantly.
You can remotely control and monitor the extensive features of your SmartSolar MMPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect.
This text is machine translated.
The SmartSolar charge controller even recharges a strongly discharged battery. It can operate with a battery voltage of only 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
By continuously monitoring the voltage and current output of your Solar(PV) modules, the technology of the MPPT ensures that really all the power available is taken from the modules and stored. The advantage of this is most noticeable when the sky is partially covered and the light intensity changes constantly.
You can remotely control and monitor the extensive features of your SmartSolar MMPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect.
This text is machine translated.
Features
- Less than 35 mA internal consumption
- IP43
- In-built Bluetooth Smart
- VE Direct
- Ultra-fast Maximum Power Point tracking
- Advanced Maximum Power Point detection in case of partial shadow
- Excellent degree of efficiency
- Flexible charging algorithms
- Comprehensive electronic protection
- Internal temperature sensor
- Optional external battery voltage and temperature measurement via Bluetooth
- Recovery function for fully discharged batteries
Scope of delivery
- Solar charge regulator
- User manual.
