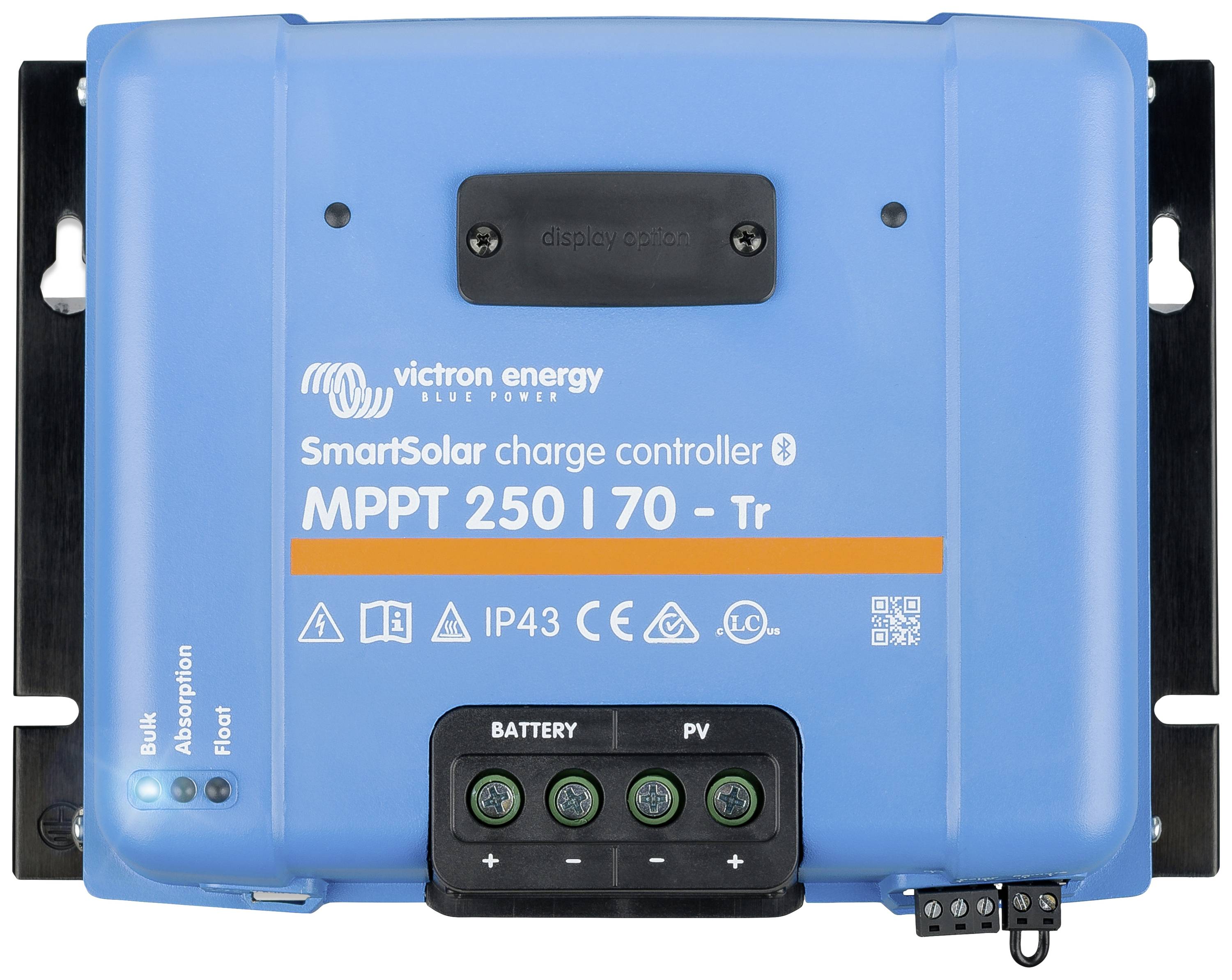

Victron Energy SmartSolar 250/70-TR Charge controller MPPT 12 V, 24 V, 48 V 70 A

Ultra-fast Maximum Power Point tracking (MPPT)
Especially when the light intensity changes continuously, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charge controllers and up to 10% as compared to slower MPPT controllers.

Advanced Maximum Power Point detection in case of partial shadow
In case of partial shadow, two or more points maximum power (MPP) may be present on the current voltage curve. Traditional MPPTs tend to adjust to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize the energy yield by adjusting to the optimal MPP.

Excellent degree of efficiency
No cooling fan. Maximum efficiency at over 98%

Flexible charging algorithms
Fully programmable loading algorithm (see also the software page on our website) as well as eight pre-programmed algorithms which can be selected via a rotary knob (please refer to our manual for more details).

Comprehensive electronic protection
Overheating protection and load reduction at high temperatures. Protection against PV short circuit and PV reverse polarity. PV reverse current protection.

Internal temperature sensor
Balances constant and charge retention voltages by temperature.

Built-in Bluetooth Smart: No dongle required
The wireless solution for set-up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

VE Direct
For a wired data connection with a Color Control GX, other GX products, a PC or other devices.

Remote-controlled on/off switch
For example, for connecting to a VE.BUS BMS

Programmable relay
Can be programmed (with a smartphone for example) to trigger an alarm or other events.

Optional: Pluggable LCD display
Simply remove the rubber sealing, which protects the plug on the front side of the controller and insert the display.
