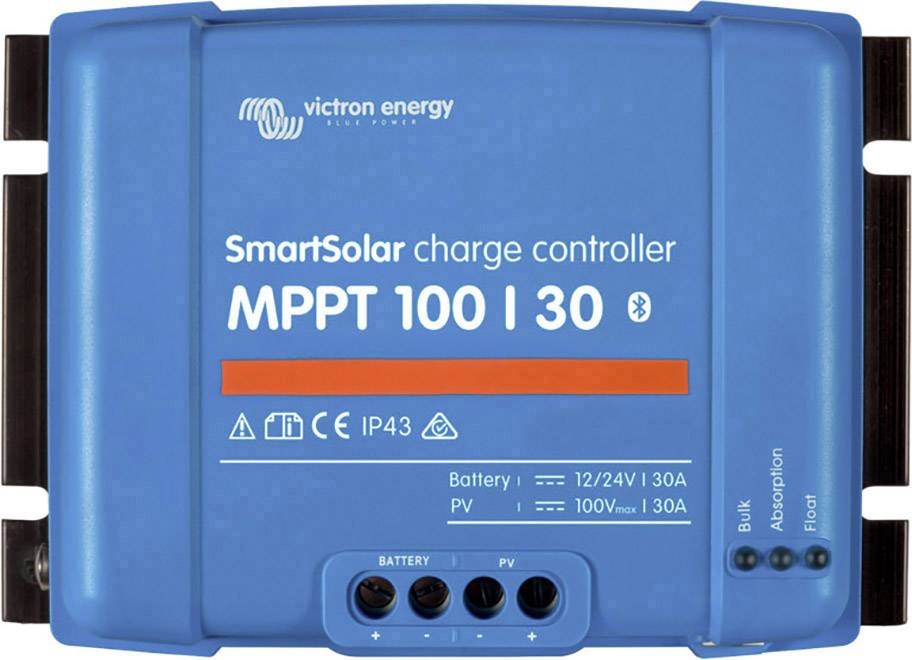

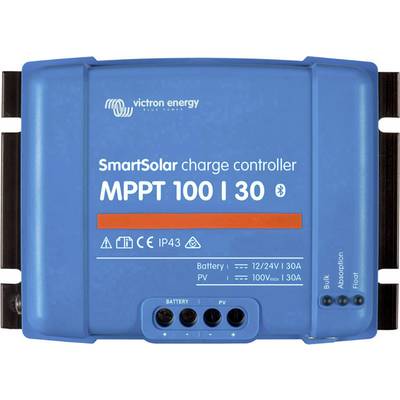

Victron Energy SmartSolar MPPT 100/30 Charge controller MPPT 12 V, 24 V 30 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller MPPT solar 100/30 Victron Smart
- Built-in Bluetooth Smart: no dongle required
- Ultra-fast Maximum Power Point Tracking (MPPT)
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
880 Wp
- Temperature range
-30 °C to +60 °C
- Charging current (max.)
30 A
- Control type
MPPT
- Dim
(L x W x H) 18.6 x 186 x 130 mm
- Weight
1.3 kg
- Width
186 mm
- Height
130 mm
- Length
18.6 mm
- Depth
70 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924490 Victron Energy SmartSolar MPPT 100/30 Charge controller MPPT 12 V, 24 V 30 A
User & Safety Instructions
User & Safety Instructions 1924490 Victron Energy SmartSolar MPPT 100/30 Charge controller MPPT 12 V, 24 V 30 A
Description
Built-in Bluetooth Smart: no dongle required
The wireless solution for set-up, monitor and update of the controller with the help of Apple and Android smartphones, tablets or other devices.
VE. Direct
For a wired data connection with a color control panel, a PC or other devices.
Ultra-fast Maximum Power Point Tracking (MPPT)
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Load output
An overcharging of the battery can be prevented by all loads at the load output can be connected. The load output separates the loads when the battery up to a specified voltage value is discharged. Alternatively, you can also be an algorithm for intelligent battery management options: See battery life. The load output is short-circuit proof.
Battery life: Intelligent battery management
Is the solar charge controller is not in a position, the battery within one day up to their full capacity to charge, changes the status of the battery is constantly between "partially loaded" and "at the end of the discharge" back and forth. This operation mode (no regular full charging a lead-acid battery) is damaged within a few weeks or months. The battery life algorithm monitors the charging state of the battery and, if necessary, the expander day after day the threshold value for cutting off the load to (i.e., the load is disconnected earlier), until the energy is sufficient to charge the batteries to almost 100%. From this point on, the threshold value for switching off the load modulated so that the charge should be almost 100% about once a week.
Options for programming, data in real time and display of the changes
- Modern Apple and Android smartphones, tablets, Macbooks and other devices: Screenshots can be found in the info sheets of the VE. Direct Bluethooth Smart dongles and the MPPT app.
Color Control Panel
This text is machine translated.
The wireless solution for set-up, monitor and update of the controller with the help of Apple and Android smartphones, tablets or other devices.
VE. Direct
For a wired data connection with a color control panel, a PC or other devices.
Ultra-fast Maximum Power Point Tracking (MPPT)
In particular, with an overcast sky, if the light intensity is constantly changing, improves an extremely fast MPPT controller in the energy yield compared to PWM charge controllers by up to 30% and in comparison to slower MPPT controllers by up to 10%.
Load output
An overcharging of the battery can be prevented by all loads at the load output can be connected. The load output separates the loads when the battery up to a specified voltage value is discharged. Alternatively, you can also be an algorithm for intelligent battery management options: See battery life. The load output is short-circuit proof.
Battery life: Intelligent battery management
Is the solar charge controller is not in a position, the battery within one day up to their full capacity to charge, changes the status of the battery is constantly between "partially loaded" and "at the end of the discharge" back and forth. This operation mode (no regular full charging a lead-acid battery) is damaged within a few weeks or months. The battery life algorithm monitors the charging state of the battery and, if necessary, the expander day after day the threshold value for cutting off the load to (i.e., the load is disconnected earlier), until the energy is sufficient to charge the batteries to almost 100%. From this point on, the threshold value for switching off the load modulated so that the charge should be almost 100% about once a week.
Options for programming, data in real time and display of the changes
- Modern Apple and Android smartphones, tablets, Macbooks and other devices: Screenshots can be found in the info sheets of the VE. Direct Bluethooth Smart dongles and the MPPT app.
Color Control Panel
This text is machine translated.
Features
- Programmable battery charging algorithm, Day/Night Time control and light insulation option, options for programming, data in real time and display of the changes
