Buy Victron Energy VRLA charger Centaur 12/60 (3) 12 V Charging current (max.) 60 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

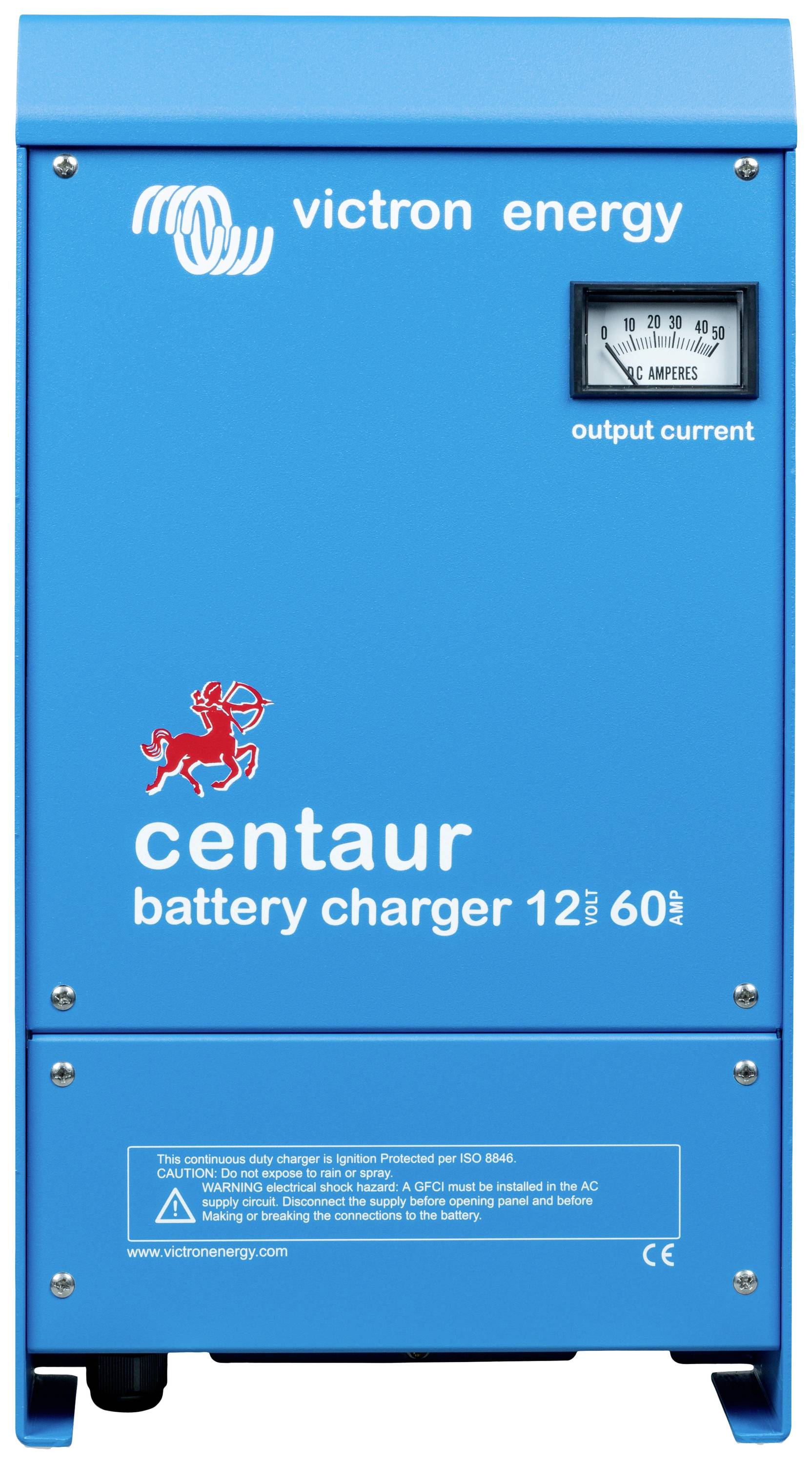

Victron Centaur 12/60 battery charger (3)

Charging current 60A
Output 12 VDC
Input 90-400 VDC or 90-265 VAC

Technical specifications

Product type: VRLA charger

Matching rechargeable battery: SLA
Lead acid membrane
Lead-acid

Suitable for lead-type rechargeables: 12 V

Recommended battery capacity (min.): 240 Ah

Recommended battery capacity (max.): 600 Ah

Charging slots: 3

Operating voltage: 90 - 264 V

Charging current (max.): 60 A

Charging current at 12 V: 60 A

Length: 426 mm

Width: 135 mm

Height: 239 mm

Weight: 5 kg

Dim: (L x W x H) 426 x 135 x 239 mm

Factory colour: Blue

Connector: Pin contact

Material: Aluminium

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3058951 Victron Energy VRLA charger Centaur 12/60 (3) 12 V Charging current (max.) 60 A

User & Safety Instructions

User & Safety Instructions 3058951 Victron Energy VRLA charger Centaur 12/60 (3) 12 V Charging current (max.) 60 A

Description

The Centaur battery charger series has an auto-adjusting input that covers the range of 90-265 VAC 50/60 Hz. This means that these chargers can be used anywhere in the world. Unlike many other devices that have universal recording power, the Centaur series maintains the full output power within the specified range. Among other things, the model has a fully automatic three-stage charging characteristic that ensures that the batteries are fully charged each time, as well as three separate charging outputs for multi-battery equipment to be suitable for most of the typical installations. The product range spans 12 V and 24 V models from 16 A to 100 A.

This text is machine translated.
