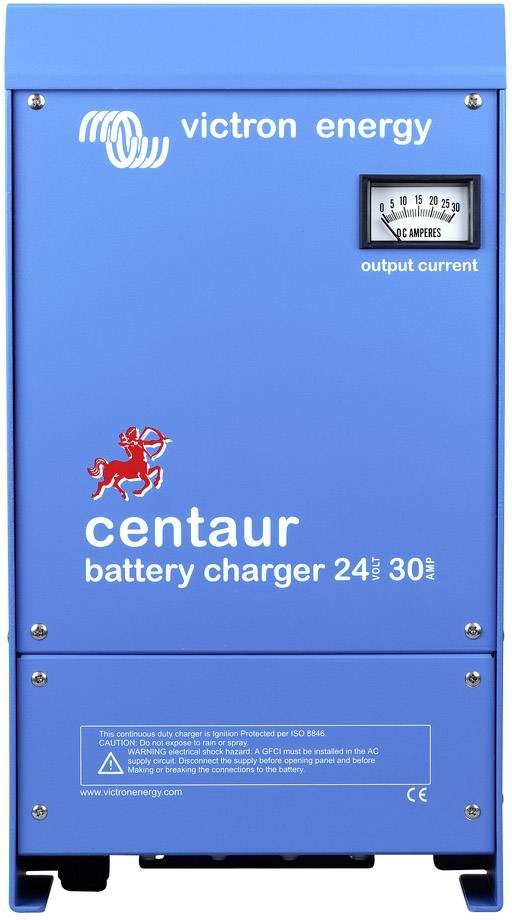

Victron Energy VRLA charger Centaur 24/30 24 V Charging current (max.) 30 A

Quality without compromise
Aluminum enclosures with epoxy powder coating, drip protection against condensation water and stainless steel hardware resist the toughest demands such as heat, humidity and salt-containing atmosphere. The printed circuit boards are protected against corrosion by an acrylic coating. Temperature sensors ensure that all power components operate within specified limits and, if necessary, the output current is automatically reduced under extreme conditions.

Universal 90 to 264 volt input:
The charger operates without any special settings in a voltage range from 90 V to 265 V at both 50 Hz and 60 Hz.

Three outputs each with full output current:
Three separate outputs for simultaneous charging of three sets of batteries. Each output supplies the full current.

Three-stage charging characteristic with temperature compensation:
Centaur first charges with Constant current (bulk) until the charging current has dropped to 70% of the nominal value. Then a fixed four-hour Constant voltage phase follows, at the end of which a maintenance charging phase is connected. The charging voltage is controlled by the internal temperature sensor (-2mV/°C per cell). A tip switch can be used to set the optimum charging voltage values for the respective battery types (e.g. wet lead-acid battery, gel battery or AGM battery).

This text is machine translated.
