Viessmann Modelltechnik 4570 H0 Motor door drive with figure movement

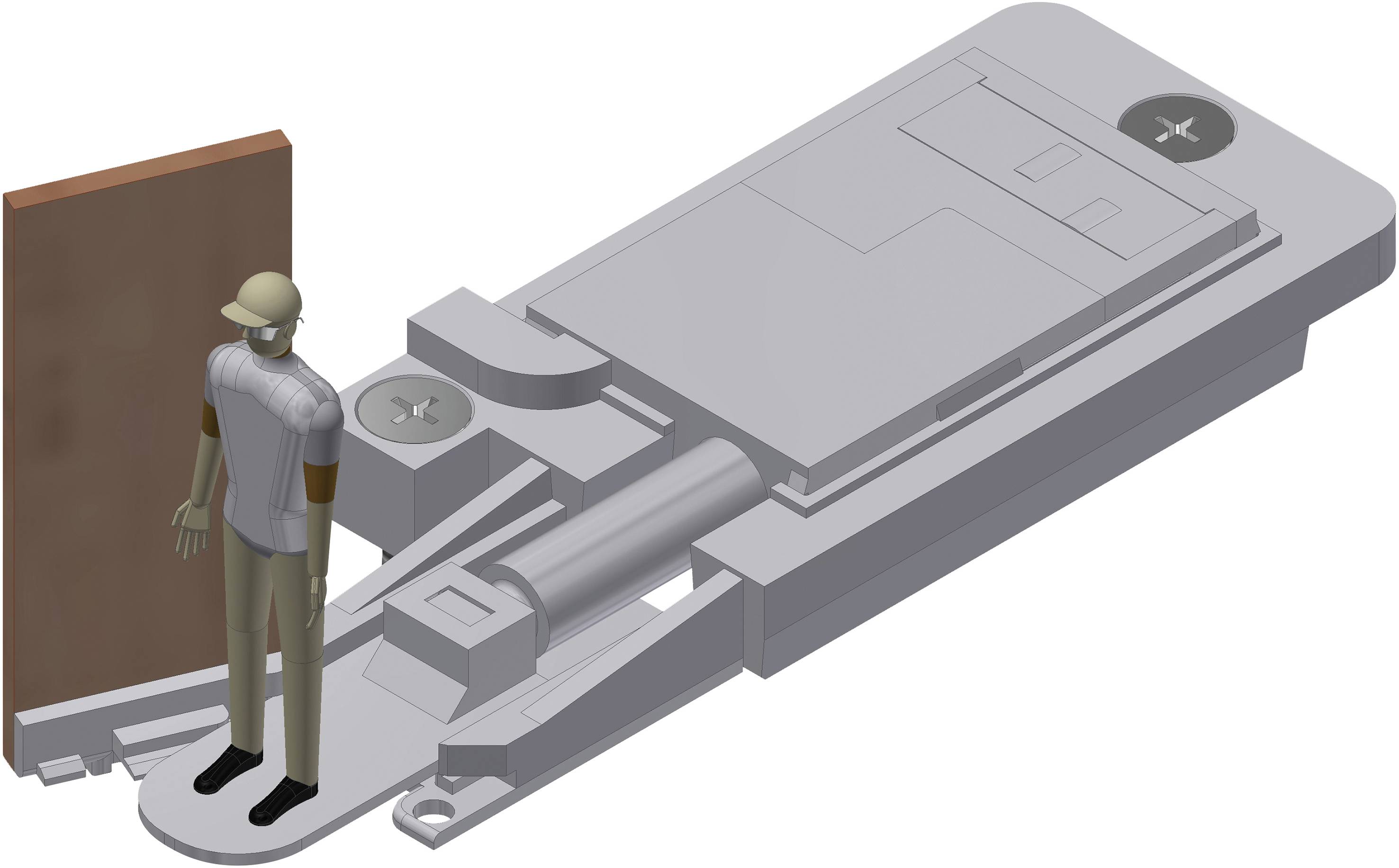

Powerful and low-noise drive in a flat design with slowly swiveling drive plate, ideal for moving single-wing doors. The associated digital decoder is located as a module in the cable, so the drive is particularly compact. It understands the formats Märklin-Motorola and DCC and can use the requested set position or the actual position via RailCom to suitable digital centers, for example Viessmann Commander Art. 5320, report back. End positions, speed and motion sequence are programmable, whereby the control ensures a sensitive drive. Operation with any end positions for the swivel angle is also possible. The decoder can also be operated in analogueue mode and has a random display program (diorama mode). Additional configurable switching outputs for relay control, which can also switch small loads and LEDs directly, complete the range of functions. The drive plate allows easy connection with doors, e.g. by sticking the parts to be moved. In addition, a base plate with movement allows the assembly of a figure, which is pushed forward when the door is opened as if a person is stepping out of the door. Applicable in tracks 0, H0 and TT. Dimensions: L approx. 5.5 2.1 x H 0.53 cm.
