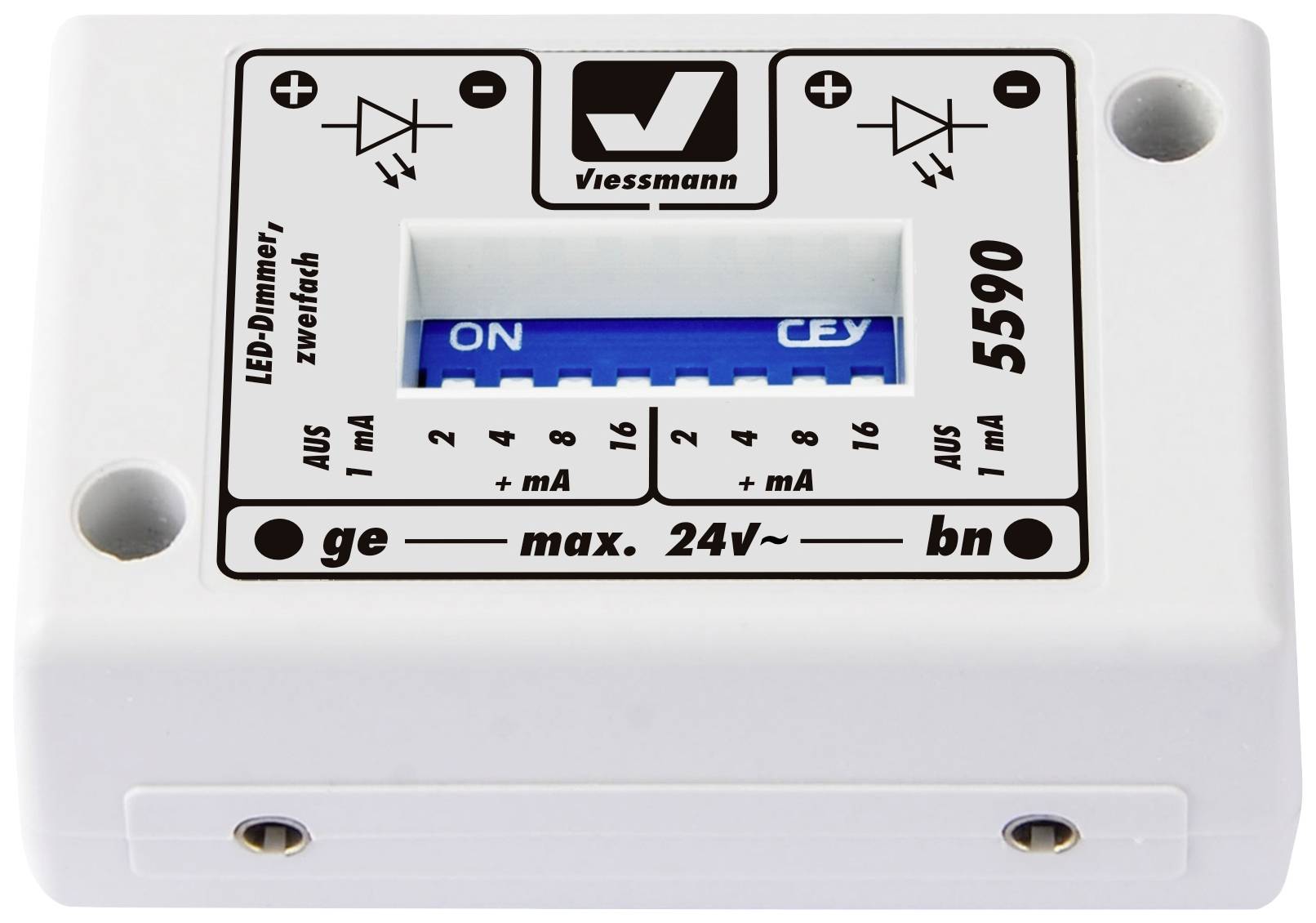

Viessmann Modelltechnik 5590 Mood lighting Dimmer + LEDs 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Mood lighting
- Functions
Dimmer
- Features
+ LEDs
- Type
Prefab component
- Output current
31 mA
- Max. operating voltage
24 V
- Operating voltage
24 V (max)
- Age category
15 years and over
- Manufacturer part #
5590
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204881 Viessmann Modelltechnik 5590 Mood lighting Dimmer + LEDs 1 pc(s)
Description
The module allows the operation of individual LEDs and light strips with stable and adjustable brightness. To do this, the module supplies the consumers with a step-adjustable current, which is largely independent of the supply voltage of the module and the properties of the LEDs. LED light strips may have connected up to 7 LEDs in a series. Suitable for Viessmann LED light strips, for example: 5086 – 5089. The module has two outputs. The brightness of the LEDs can be adjusted via the current for each output with 4 DIP switches (binary) independent of each other. Starting from approx. 1 mA currents can be set up to a maximum of approx. 31 mA. The maximum input voltage is 24 V AC.
