Viessmann Modelltechnik 8452 Car System H0

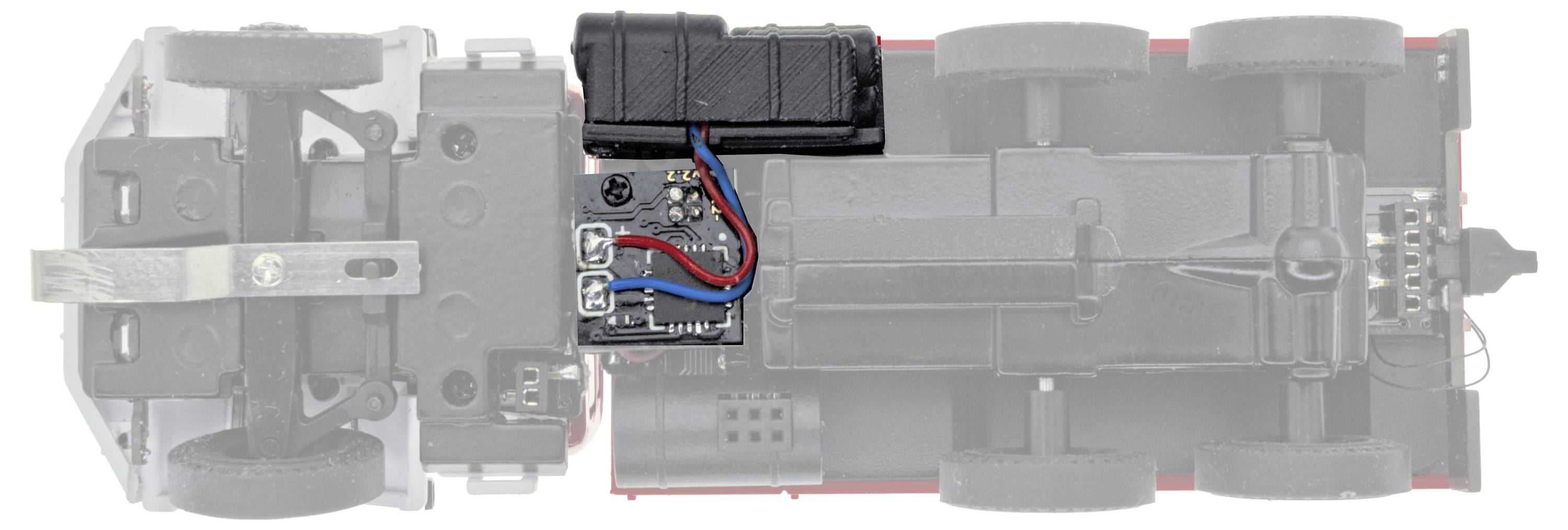

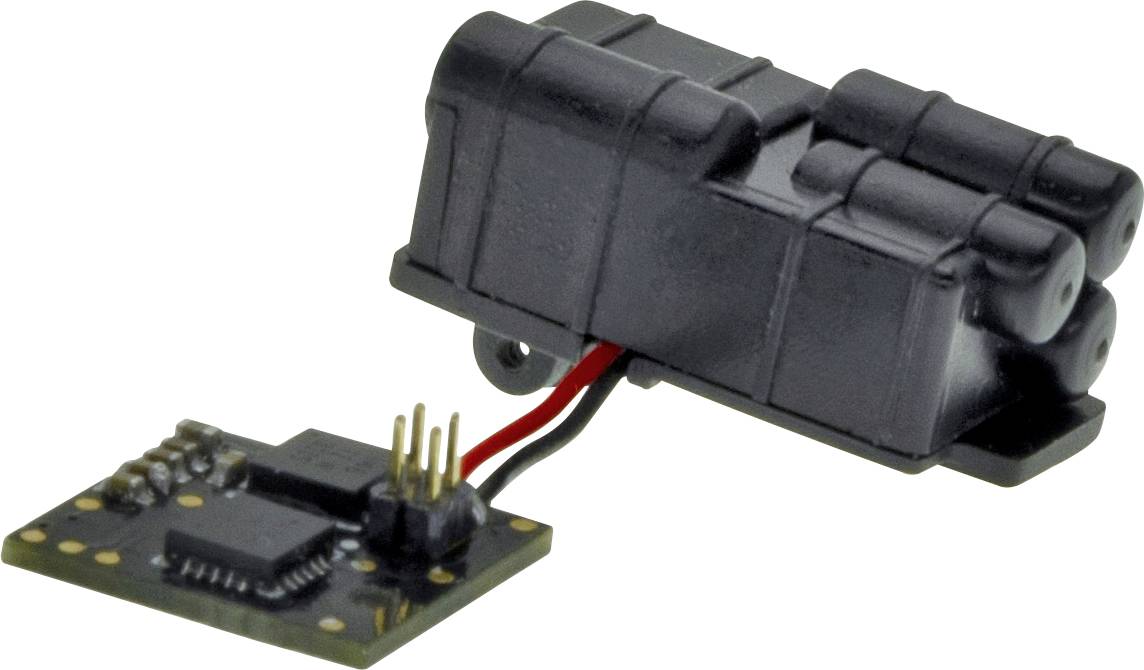

Enrich your CarMotion system with sound in the vehicles. The upgradable sound modules are vehicle-specific and thus adapted mechanically, color and acoustically to the respective types. They play engine sounds from starting and stopping the engine as well as various driving noises such as gear changes, brake squeal and - depending on the type of vehicle - also reverse warning signal. Horn, and if present, also siren are switchable. The volume of the motor sound can be adjusted. The switchable or adjustable sounds can be activated via remote control, DCC command or via infrared command or magnetic sequence. The sound module circuit board is simply connected to the vehicle PCB and screwed down using a four-pin plug. The previous left-hand attachments such as exhaust, air tanks, etc. are replaced by the new attachments that contain the speaker. Please note that vehicles without the four-pole extension socket cannot be equipped with a sound module. Output 250 mW, efficiency 81 dBA, frequency range approx. 800 – 10 kHz.
