Viking Tech CSRV0207FTDT1R80 SMD resistor 1.8 Ω SMD 0207 1 W 1 % 50 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
0207
Resistance
1.8 Ω
Power rating
1 W
Datasheet (PDF)
Highlights & Details

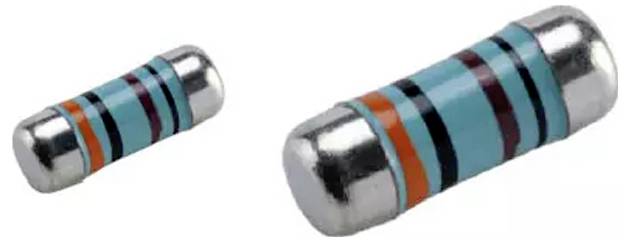

Viking Tech Corporation Melf resistor CSRV 0207 1R8
Our service for you
Technical specifications
- Application: Automotive (non safety-relevant parts), industry, telecommunications, medical equipment, measurement and test equipment
- MSL: 1 - unlimited
- Series: CSRV0207
- Size 0207
- Delivery type: Belt
- Weight: 0.0809 g
- Diameter, Resistance element 2.2 mm
- Resistance tolerance: ±1 %
- Rated output: 1 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 350 V DC
- Rated voltage: 200 V
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
0207
- Resistance
1.8 Ω
- Power rating
1 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/°C
- Length
5.9 mm
- (Ø)
2.2 mm
- Content
1 pc(s)
- Dim
(Ø x L) 2.2 mm x 5.9 mm
- RoHS-compliant
Yes
- Type
CSRV0207FTDT1R80
- Nominal current
5.000 mA
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
Documents & Downloads
Datasheet
Datasheet 3466104 Viking Tech CSRV0207FTDT1R80 SMD resistor 1.8 Ω SMD 0207 1 W 1 % 50 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3466104 Viking Tech CSRV0207FTDT1R80 SMD resistor 1.8 Ω SMD 0207 1 W 1 % 50 ppm/°C 1 pc(s) Tape
Description
Melf CSRV metal film resistors 1W 1
This text is machine translated.
This text is machine translated.
Features
- • Temperature coefficient (TC) ±50ppm/°C.
- • Tolerance of 1%
- • Thin-film technology
- • Excellent overall stability
- • Sn termination on Ni junction
- • SMD-capable structure
