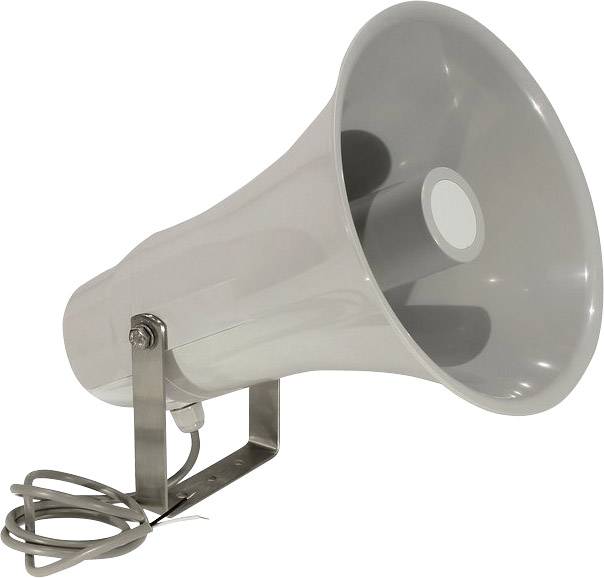

Visaton DK 10 MW - 100 V/70 V/8 Ohm Horn loudspeaker 60 W Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton DK 10 MW pressure hammer horn
- Outstanding voice clarity
- 100 V or 8-Ohm-Betrieb
Technical specifications
- Product type
Horn loudspeaker
- RMS capacity
30 W
- Max. load
60 W
- Impedance
8 Ω
- SPL
125 dB
- Features
UV-resistant
IP66
- Frequency range
400-5000 Hz
- Operating voltage
100 V
- Factory colour
Grey
- Width
13.5 mm
- Height
12.1 mm
- Length
30.9 mm
- (Ø)
23.2 mm
- Weight
1.4 kg
- Dim
(Ø x H) 23.2 mm x 12.1 mm
- Max. sound pressure
125 dB
Documents & Downloads
Datasheet
Datasheet 1487536 Visaton DK 10 MW - 100 V/70 V/8 Ohm Horn loudspeaker 60 W Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1487536 Visaton DK 10 MW - 100 V/70 V/8 Ohm Horn loudspeaker 60 W Grey 1 pc(s)
Description
Pressure chamber loudspeaker with a very high medium-sized sound pressure level and broad, balanced frequency response. This is an excellent speech intelligibility is guaranteed. Power adjustment in 100 V/70-V or 8-Ohm-Betrieb is done via rotary switch, which is protected against accidental switching on or off. UV-resistant, light-gray plastic housing (ABS UL94: HB). Swivel-mounted stainless steel (V2A/AISI 304) for fixing to ceilings, walls, pillars etc.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 30 W
- Music resiliency: 60 W
- Transmission range (-10 dB) 400 - 5000 Hz
- Average Sound pressure level 110 dB (1 W/1 m)
- Maximum sound pressure level 125 dB (30 W/1 m)
- Net weight: 2.11 kg
- Protection class IP66.
