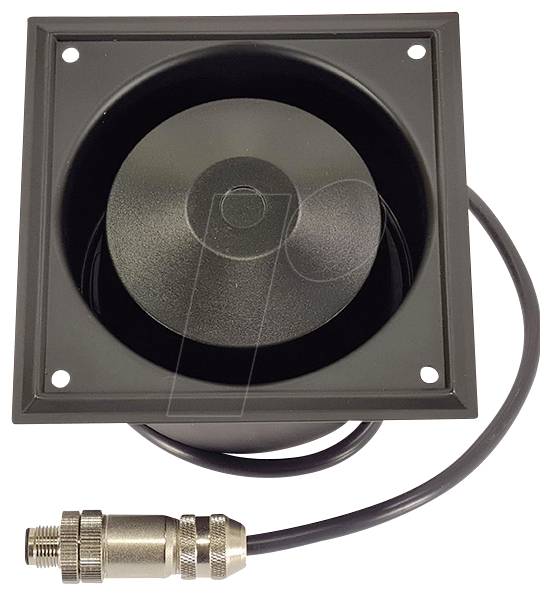

Visaton DK 121 AN - 8 Ohm Compression drive speaker Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Installation-pressure chamber loudspeaker with low installation height. Waterproof model with a 8 ohm impedance
Technical specifications
- Product type
Compression drive speaker
- RMS capacity
10 W
- Impedance
8 Ω
- SPL
100
- Features
weatherproof
IP66/IP67
- Frequency range
570 - 4400 Hz
- Factory colour
Black
- Weight
650 g
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3594908 Visaton DK 121 AN - 8 Ohm Compression drive speaker Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3594908 Visaton DK 121 AN - 8 Ohm Compression drive speaker Black 1 pc(s)
Warranty Terms
Warranty Terms 3594908 Visaton DK 121 AN - 8 Ohm Compression drive speaker Black 1 pc(s)
Description
Installation-pressure chamber loudspeaker with low installation height. Waterproof model with a 8 ohm impedance. Casing made of black painted aluminum, horn inserts made of polypropylene
(PP). High IP protection class, high sound pressure and good speech understanding. Particularly suitable for inconspicuous mounting, e.g., on vehicles, due to the compact dimensions. The potential equalization is carried out using an M6 threaded pin (including two screws, spring ring and tooth washer, maximum tightening torque of 2 Nm) on the back of the housing. Plug M12, D-coding
Application area:
Exterior sound on vehicles
Acoustic irradiation of workshops, railway stations, etc.
For use in alarm systems
This text is machine translated.
