Visaton DK 6 MW - 100 V/70 V/8 Ohm Horn loudspeaker 20 W Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

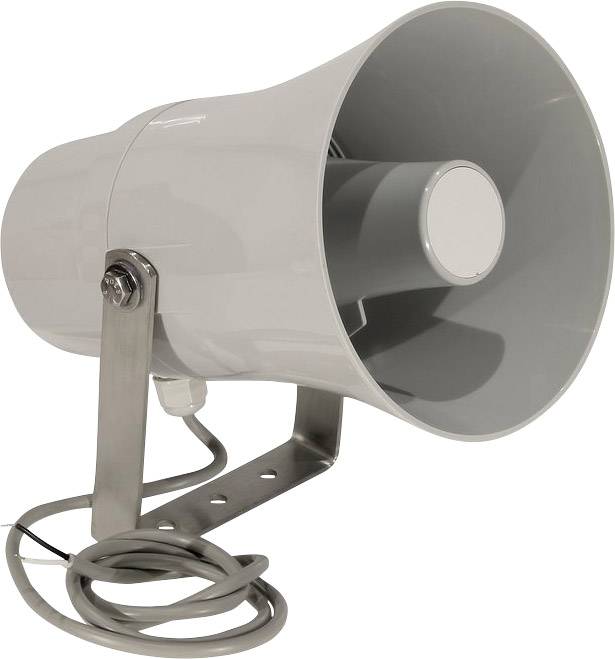

Visaton DK 6 MW pressure hammer horn
- Outstanding voice clarity
- 100-V/70-V or 8-Ohm-Betrieb
- UV resistant
Technical specifications
- Product type
Horn loudspeaker
- RMS capacity
10 W
- Max. load
20 W
- Impedance
8 Ω
- Features
UV-resistant
IP66
- Frequency range
400 - 5 500 Hz
- Operating voltage
100 V
- Factory colour
Grey
- Material
ABS plastic
- Length
22 cm
- (Ø)
15.6 cm
- Weight
1.54 kg
- Dim
(Ø x L) 15.6 cm x 22 cm
- Max. sound pressure
116 dB
Documents & Downloads
Datasheet
Datasheet 1487538 Visaton DK 6 MW - 100 V/70 V/8 Ohm Horn loudspeaker 20 W Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1487538 Visaton DK 6 MW - 100 V/70 V/8 Ohm Horn loudspeaker 20 W Grey 1 pc(s)
Description
Pressure chamber loudspeaker with a very high medium-sized sound pressure level and broad, balanced frequency response. This is an excellent speech intelligibility is guaranteed. Power adjustment in 100 V/70-V or 8-Ohm-Betrieb is done via rotary switch, which is protected against accidental switching on or off. UV-resistant, light-gray plastic housing (ABS UL94: HB). Swivel-mounted stainless steel (V2A/AISI 304) for fixing to ceilings, walls, pillars etc.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 10 W
- Music resiliency: 20 W
- Transmission range (-10 dB) 400 - 5500 Hz
- Average Sound pressure level 106 dB (1 W/1 m)
- Maximum sound pressure level 116 dB (10 W/1 m)
- Net weight: 1.54 kg
- Protection class IP66.
