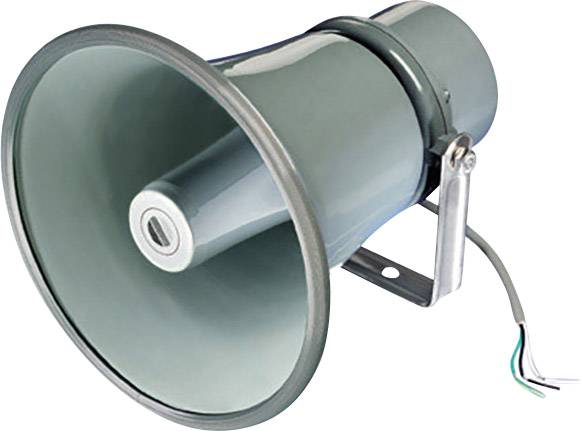

Visaton DK 8 D Horn loudspeaker 15 W Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton DK 8D printing hammer horn
- 100V transformer
- UV-resistant
Technical specifications
- Product type
Horn loudspeaker
- RMS capacity
15 W
- Max. load
15 W
- Impedance
20 Ω
- Features
UV-resistant
IP66
- Frequency range
400-5000 Hz
- Operating voltage
100 V
- Factory colour
Grey
- Material
Plastic
- Width
23.1 mm
- Height
12.7 mm
- Length
23.1 mm
- (Ø)
21.4 mm
- Weight
1.4 kg
- Dim
(Ø x H) 21.4 mm x 12.7 mm
- Max. sound pressure
117 dB
Documents & Downloads
Datasheet
Datasheet 1487534 Visaton DK 8 D Horn loudspeaker 15 W Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1487534 Visaton DK 8 D Horn loudspeaker 15 W Grey 1 pc(s)
Description
Pressure chamber loudspeaker with 100 V transformer and built-in capacitor for line monitoring by impedance measurement. Power adjustment of the 100-V-model in five stages by means of rotary switch, an additional 20-Ohm-Einstellung is possible. Outstanding voice clarity, due to the high sound pressure and wide frequency response. Swivelling Metal bracket for fixing to ceilings, walls, pillars etc.
This text is machine translated.
This text is machine translated.
Features
- Transformer adaptation: 15; 10; 5; 3; 1 W; 20 Ohm
- Sound pressure level 107 dB (1 W/1 m) @ 1144 Hz
- Transmission range (-10 dB) 400 - 5000 Hz
- Average Sound pressure level 105 dB (1 W/1 m)
- Maximum sound pressure level 117 dB (15 W/1 m)
- Angle of radiation (-6dB): 42°/4000 Hz.
