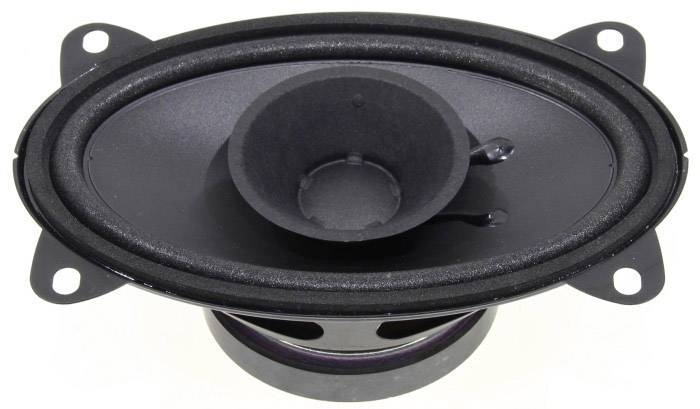

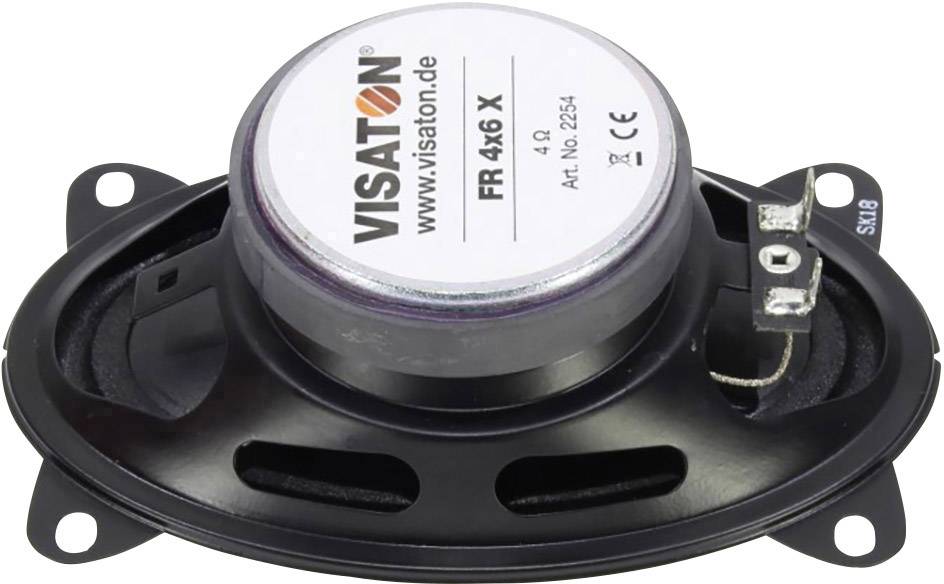

Visaton FR 4x6 X - 4 Ohm 15 cm Wideband speaker 15 W 4 Ω Ovale
EAN:
Part number:
Item no:
Datasheet (PDF)
Visaton FR 4 x 6 x broadband loudspeaker
Highlights & Details
- Load capacity RMS/max. 15/30 W
- With Treble Cone
- Very good music and speech reproduction
Technical specifications
- Product type
Wideband speaker
- Features
Ovale
- Speaker size (cm)
15 cm
- RMS capacity
15 W
- Max. load
30 W
- Max. frequency
20000 Hz
- Min. frequency
75 Hz
- Impedance
4 Ω
- Sound pressure
87 dB
- Recess depth
46 mm
- Weight
456 g
- Frequency range
75 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141392 Visaton FR 4x6 X - 4 Ohm 15 cm Wideband speaker 15 W 4 Ω Ovale
User & Safety Instructions
User & Safety Instructions 2141392 Visaton FR 4x6 X - 4 Ohm 15 cm Wideband speaker 15 W 4 Ω Ovale
Description
9 x 15 cm (4" x 6") broadband speaker with treble cone. Wide range and balanced frequency response. Well-suited for music and speech reproduction.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 15W
- Music load-carrying capacity 30
- Transmission range 75-20000 Hz.
