Buy Visaton FRS 10 WP - 8 Ohm 4 inch 10 cm Wideband speaker 25 W 8 Ω White Sauna/steam room suitability, Recessed speaker, S

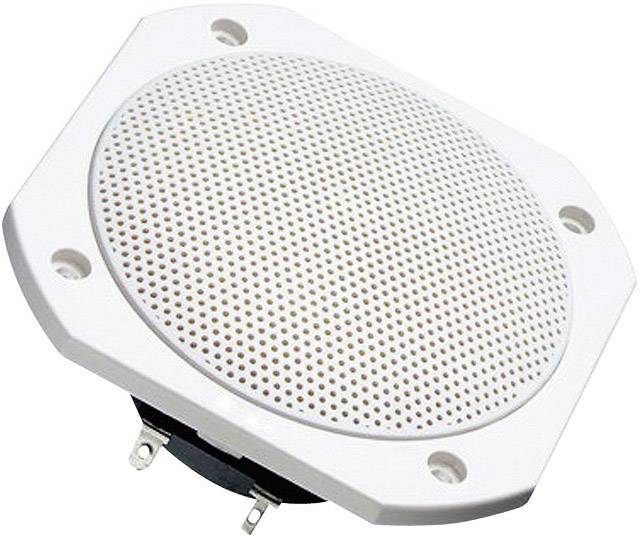

White speaker with a square cover and rounded corners. Front view reveals a perforated design for sound projection.

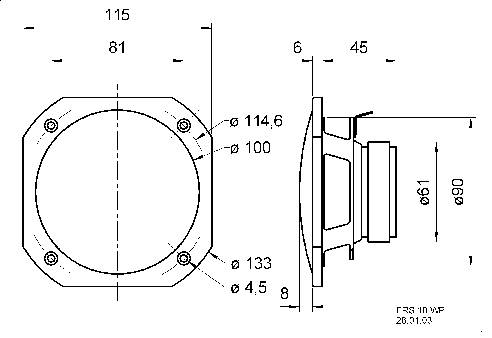

Technical drawing of a loudspeaker with dimensional specifications. Shows front and side views with diameter and screw hole positioning.

1/2

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Report legal concerns

Sauna loudspeaker FRS 10 WP 8 Ohm

Highlights & Details

Temperature resistant up to 120 ºC
Water-resistant
Weather-proof

Technical specifications

Product type: Wideband speaker

Features: Sauna/steam room suitability
Recessed speaker
Saltwater-resistant

Speaker size (cm): 10 cm

Speaker size (inch): 4 inch

RMS capacity: 25 W

Max. load: 50 W

Max. frequency: 19000 Hz

Min. frequency: 90 Hz

Impedance: 8 Ω

Sound pressure: 90 dB

Recess diameter: 92 mm

Recess depth: 47 mm

Weight: 360 g

Factory colour: White

Frequency range: 90 Hz - 19000 Hz

Type: Square

Max. RMS power: 25/50 W

Frequency range: 90 - 19 000 Hz

SPL: 90 dB

Documents & Downloads

Datasheet

Datasheet 329878 Visaton FRS 10 WP - 8 Ohm 4 inch 10 cm Wideband speaker 25 W 8 Ω White Sauna/steam room suitability, Recessed speaker, S

User & Safety Instructions

User & Safety Instructions 329878 Visaton FRS 10 WP - 8 Ohm 4 inch 10 cm Wideband speaker 25 W 8 Ω White Sauna/steam room suitability, Recessed speaker, S

Description

Weatherproof and durable, it is most suitable for saunas, swimming baths, exterior sound systems, or as a mounted speaker on boats, ships or open vehicles. 10 cm wide-band loudspeaker with glass fibre diaphram, plastic cage and grille. Balanced frequency response, high efficiency and good mid-range/treble reproduction.
