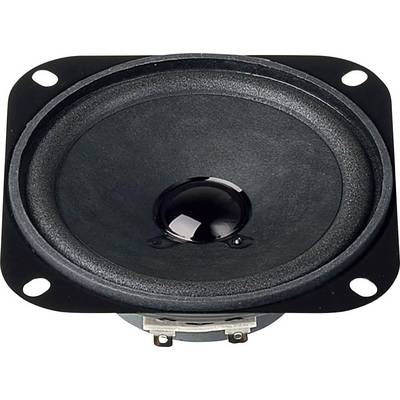

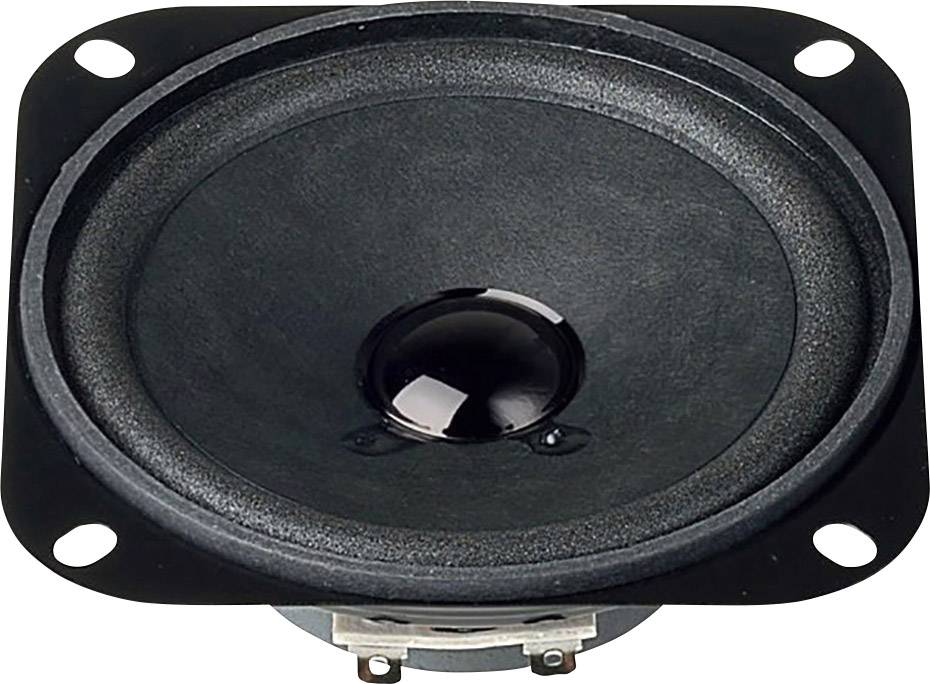

Visaton FRW 10 N - 8 Ohm 4 inch 10 cm Wideband speaker 10 W 8 Ω Black
EAN:
Part number:
Item no:
Datasheet (PDF)

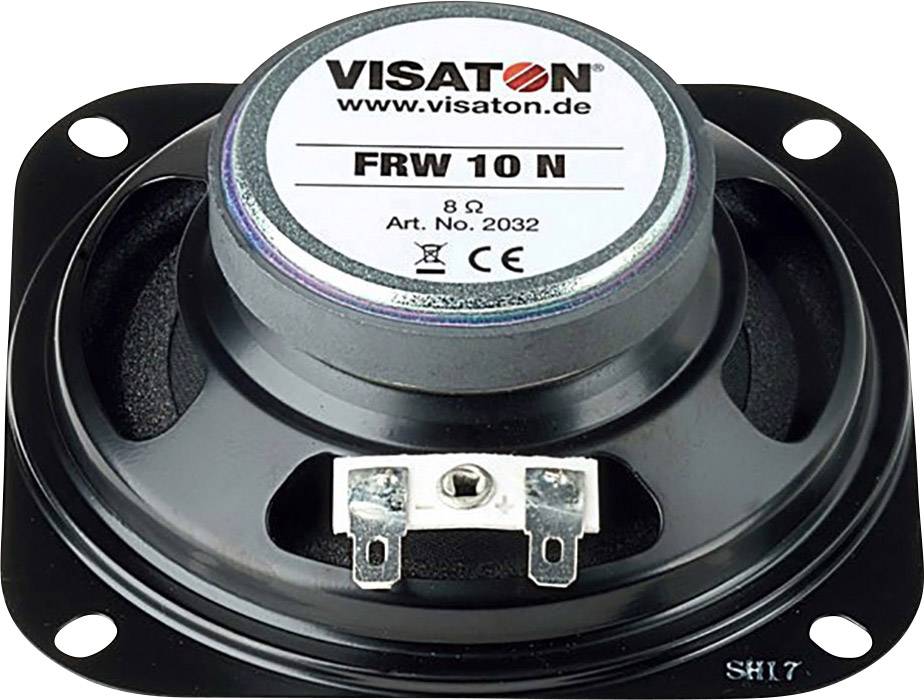

Visaton FRW 10N broadband loudspeaker
Highlights & Details
- Load capacity RMS/max. 10/20 W.
- Broadband loudspeaker with a high degree of efficiency
- Very good speech intelligibility
Technical specifications
- Product type
Wideband speaker
- Speaker size (cm)
10 cm
- Speaker size (inch)
4 inch
- RMS capacity
10 W
- Max. load
20 W
- Max. frequency
17000 Hz
- Min. frequency
80 Hz
- Impedance
8 Ω
- Sound pressure
86 dB
- Recess diameter
116.6 mm
- Recess depth
38.2 mm
- Weight
160 g
- Factory colour
Black
- Frequency range
80 Hz - 17000 Hz
Documents & Downloads
Datasheet
Datasheet 2141386 Visaton FRW 10 N - 8 Ohm 4 inch 10 cm Wideband speaker 10 W 8 Ω Black
User & Safety Instructions
User & Safety Instructions 2141386 Visaton FRW 10 N - 8 Ohm 4 inch 10 cm Wideband speaker 10 W 8 Ω Black
Description
10 cm (4")-broadband loudspeaker with a high degree of efficiency and balanced frequency response with high-tone rise. Very good speech understanding with this. Especially suitable as a flush mounted speaker for electronic devices and sound systems. Through the deeper resonance frequency improved bass playback.
This text is machine translated.
This text is machine translated.
Features
- Nominal Impedance 8 ohms
- Transmission range 800-25000 Hz
- Average Sound pressure level 89 dB (1 W/1 m).
