Buy Visaton G 50 FFL - 8 Ohm 2 inch 50 cm Mid-range speaker 120 W 8 Ω

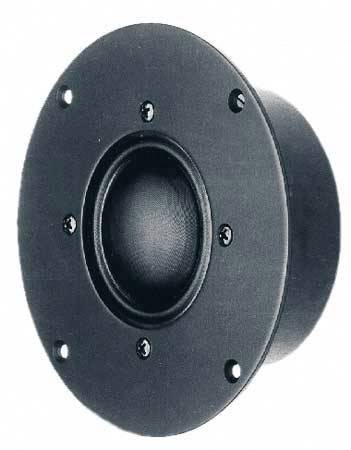

Round black speaker driver fastened with four screws at the edges, mounted in an enclosure.

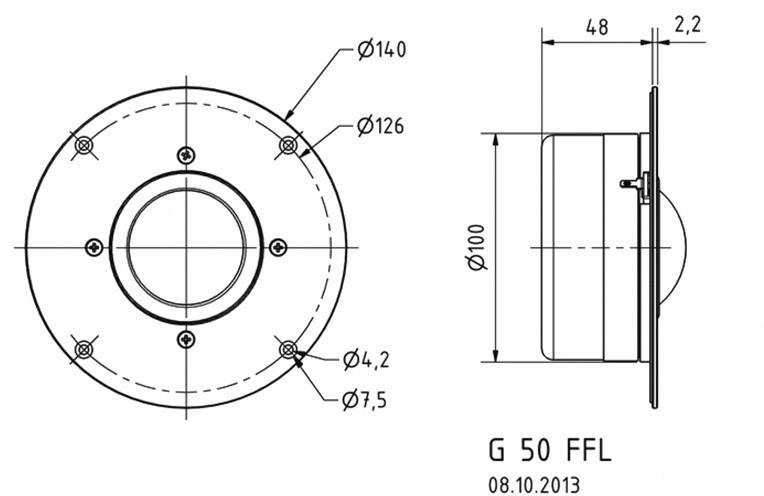

Technical drawing of a circular mounting with dimensions: diameter 140 mm and 126 mm. Side view shows height of 48 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Visaton G 50 FFL fabric calotte

Highlights & Details

50 mm (2") high-end fabric calotte
For the mid range.
High damping

Technical specifications

Product type: Mid-range speaker

Speaker size (inch): 2 inch

Speaker size (cm): 50 cm

RMS capacity: 120 W

Max. load: 180 W

Min. frequency: 300 Hz

Max. frequency: 12000 Hz

Impedance: 8 Ω

Sound pressure: 90 dB

Recess diameter: 100 mm

Recess depth: 48 mm

Weight: 1 kg

Frequency range: 300 Hz - 12000 Hz

(Ø): 14 cm

Documents & Downloads

Datasheet

Datasheet 2141403 Visaton G 50 FFL - 8 Ohm 2 inch 50 cm Mid-range speaker 120 W 8 Ω

User & Safety Instructions

User & Safety Instructions 2141403 Visaton G 50 FFL - 8 Ohm 2 inch 50 cm Mid-range speaker 120 W 8 Ω

Warranty Terms

Warranty Terms 2141403 Visaton G 50 FFL - 8 Ohm 2 inch 50 cm Mid-range speaker 120 W 8 Ω

Description

50 mm (2") high-end cloth dome with round front plate for the mid range between 800 and 7000 Hz. By the optimal dome shape with absorbing coating, in conjunction with a fabric bead, the particularly high attenuation is a linear and partial vibration-free frequency response is achieved. The powerful magnetic drive and the ferrofluid-cooled voice coil guarantee both a high degree of efficiency and high load-carrying capacity.

This text is machine translated.
