Visaton K 10.30 - 8 Ohm 1.2 inch 3 cm Mini speaker 0.5 W 8 Ω Ovale
EAN:
Part number:
Item no:
Datasheet (PDF)
Visaton K 10:30 small speaker
Highlights & Details
- Load carrying capacity RMS/Max: 0.5/1 W

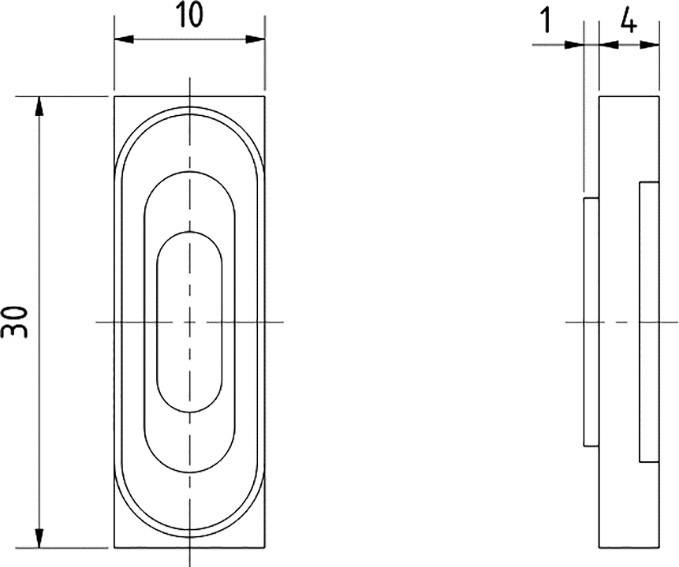

- 1 x 3 cm (0.39" x 1.2")
- Plastic basket and coated fabric membrane
Technical specifications
- Product type
Mini speaker
- Features
Ovale
- Speaker size (cm)
3 cm
- Speaker size (inch)
1.2 inch
- RMS capacity
0.5 W
- Max. load
1 W
- Max. frequency
20000 Hz
- Min. frequency
750 Hz
- Impedance
8 Ω
- Sound pressure
85 dB
- Recess diameter
30 mm
- Recess depth
5 mm
- Weight
2.5 g
- Frequency range
750 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141396 Visaton K 10.30 - 8 Ohm 1.2 inch 3 cm Mini speaker 0.5 W 8 Ω Ovale
User & Safety Instructions
User & Safety Instructions 2141396 Visaton K 10.30 - 8 Ohm 1.2 inch 3 cm Mini speaker 0.5 W 8 Ω Ovale
Description

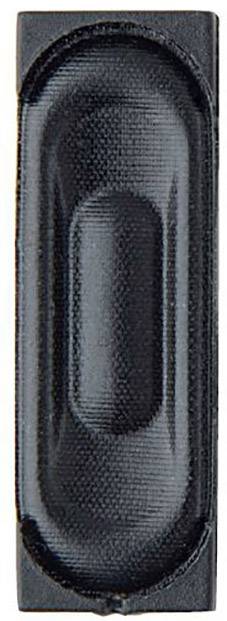

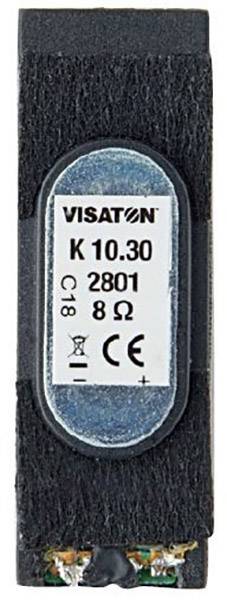

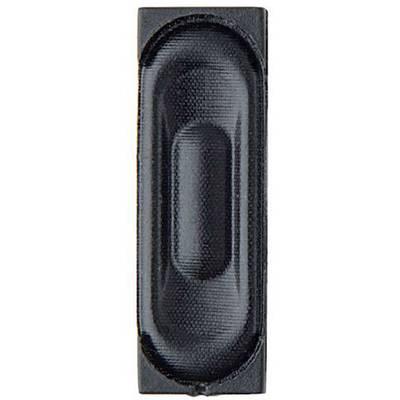

1 x 3 cm (0.39" x 1.2") small speaker with plastic basket and coated fabric membrane. The electric connection of the lotkantakte success on the back. Suitable for signal and voice output for applications where little space is available.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 0.5 W
- Music power 1 W
- Transmission range (-10 dB) 750 0000 Hz.
