Visaton K 14.25 - 8 Ohm 1 inch 2.5 cm Mini speaker 1 W 8 Ω Ovale, Plastic diaphragm
EAN:
Part number:
Item no:
Datasheet (PDF)

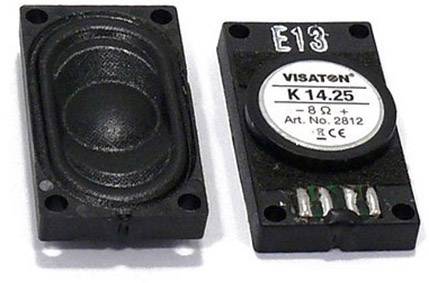

Visaton K 14.25 small speaker
Highlights & Details
- Load carrying capacity RMS/Max: 1/1.5 W

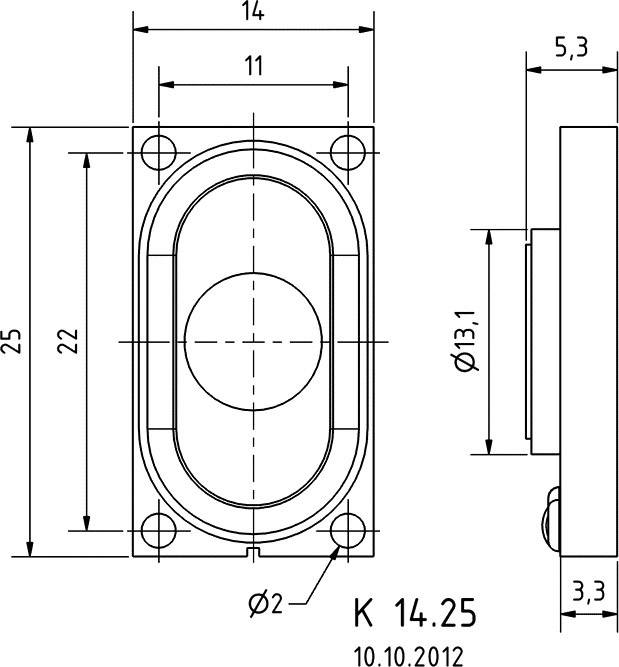

- 1.4 x 2.5 cm (0.5" x 1") small speaker
- Plastic diaphragm and rectangular plastic basket
Technical specifications
- Product type
Mini speaker
- Features
Ovale
Plastic diaphragm
- Speaker size (cm)
2.5 cm
- Speaker size (inch)
1 inch
- RMS capacity
1 W
- Max. load
1.5 W
- Max. frequency
20000 Hz
- Min. frequency
500 Hz
- Impedance
8 Ω
- Sound pressure
72 dB
- Recess depth
5.3 mm
- Weight
25 g
- Frequency range
500 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141401 Visaton K 14.25 - 8 Ohm 1 inch 2.5 cm Mini speaker 1 W 8 Ω Ovale, Plastic diaphragm
User & Safety Instructions
User & Safety Instructions 2141401 Visaton K 14.25 - 8 Ohm 1 inch 2.5 cm Mini speaker 1 W 8 Ω Ovale, Plastic diaphragm
Description
1.4 x 2.5 cm (0.5" x 1") small speaker with plastic membrane and rectangular plastic basket. Compact size makes it suitable as output medium for devices, which little available space. The connection is made via the rear solder joints.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 1 W
- Music capacity 1.5 W
- Transmission range (-10 dB) - 500-2 0000 Hz.
