Visaton K 15 S - 8 Ohm 0.59 inch 1.5 cm Mini speaker 0.25 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

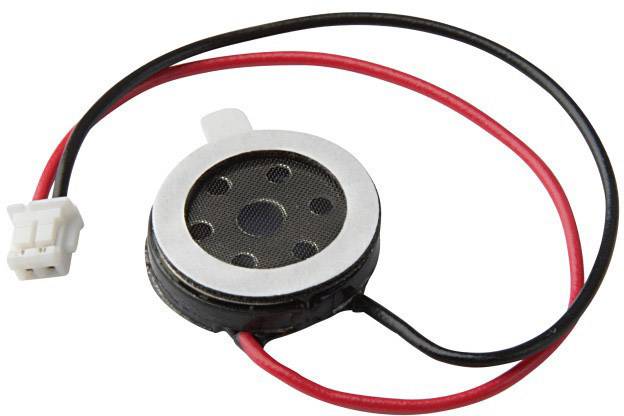

Visaton K 15 S small speaker
- Load carrying capacity RMS/Max: 0.25/0.5 W
- 1.5 cm (0.59") small speaker
- Front-mounted adhesive surface
Technical specifications
- Product type
Mini speaker
- Speaker size (cm)
1.5 cm
- Speaker size (inch)
0.59 inch
- RMS capacity
0.25 W
- Max. load
0.5 W
- Max. frequency
20000 Hz
- Min. frequency
800 Hz
- Impedance
8 Ω
- Recess diameter
13 mm
- Recess depth
4 mm
- Weight
1.58 g
- Frequency range
800 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141398 Visaton K 15 S - 8 Ohm 0.59 inch 1.5 cm Mini speaker 0.25 W 8 Ω
User & Safety Instructions
User & Safety Instructions 2141398 Visaton K 15 S - 8 Ohm 0.59 inch 1.5 cm Mini speaker 0.25 W 8 Ω
Description

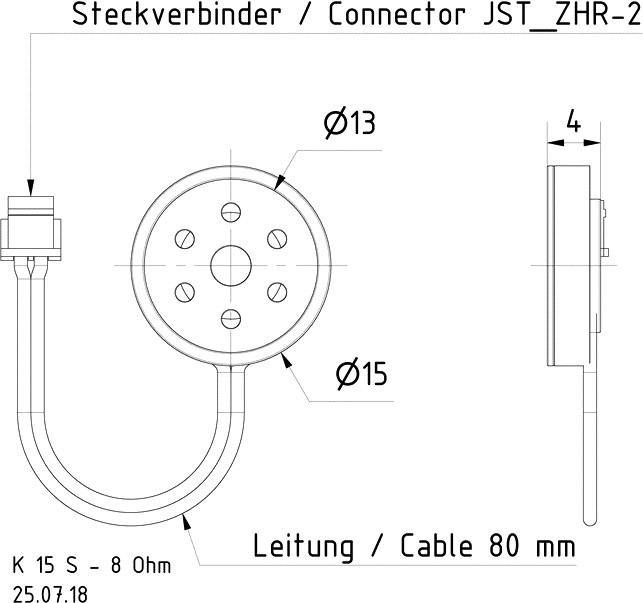

1.5 cm (0.59") small speaker with very small dimensions and a on the front of the adhesive surface. The connection is made via a JST CONNECTOR ZHR-2.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 0.25 W
- Music capacity 0.5 W
- Transmission range (-10 dB) - 800-20000 Hz.
