Visaton K 20 - 8 Ohm 0.8 inch 2 cm Mini speaker 1 W 8 Ω Black Plastic diaphragm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton K 20 small speaker
- Load carrying capacity RMS/Max: 1/1.5 W
- 2 cm (0.8") small speaker
- Plastic membrane and the round metal basket
Technical specifications
- Product type
Mini speaker
- Features
Plastic diaphragm
- Speaker size (cm)
2 cm
- Speaker size (inch)
0.8 inch
- RMS capacity
1 W
- Max. load
1.5 W
- Max. frequency
20000 Hz
- Min. frequency
600 Hz
- Impedance
8 Ω
- Sound pressure
73 dB
- Recess diameter
20 mm
- Recess depth
3.6 mm
- Weight
2.3 g
- Factory colour
Black
- Frequency range
600 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141397 Visaton K 20 - 8 Ohm 0.8 inch 2 cm Mini speaker 1 W 8 Ω Black Plastic diaphragm
User & Safety Instructions
User & Safety Instructions 2141397 Visaton K 20 - 8 Ohm 0.8 inch 2 cm Mini speaker 1 W 8 Ω Black Plastic diaphragm
Description

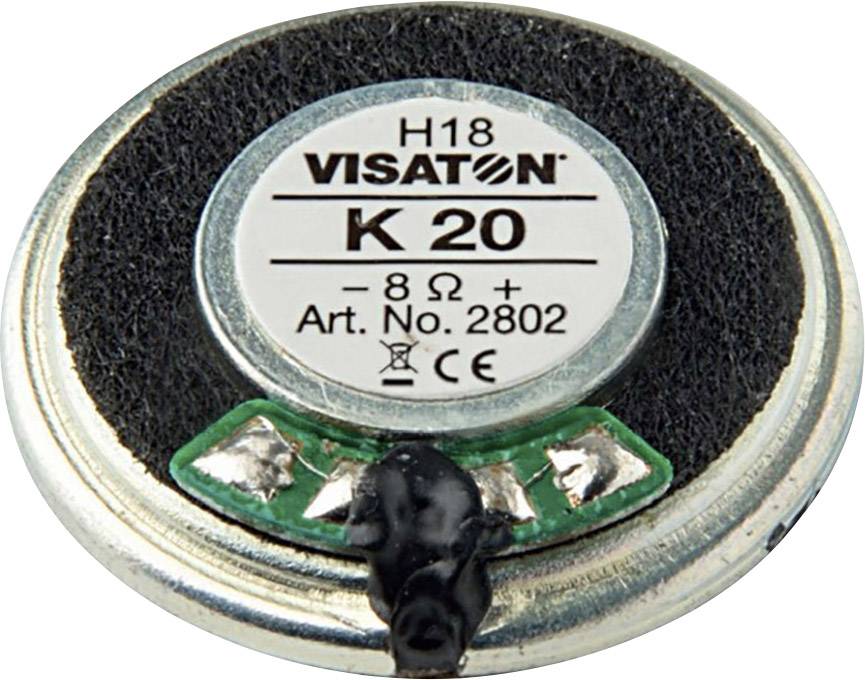

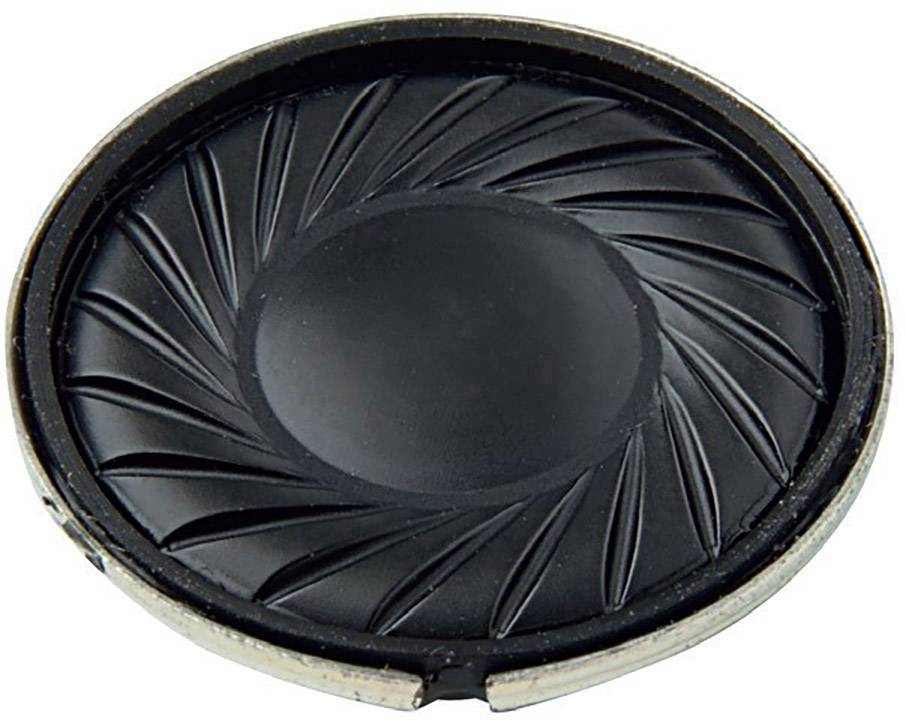

2 cm (0.8") small speaker with plastic membrane and the round metal basket. Compact size makes it suitable as output medium for devices, which little available space. The connection is made via the rear solder joints.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 1 W
- Music capacity 1.5 W
- Transmission range (-10 dB) - 600-20000 Hz.
