Visaton K 36 MO - 8 Ohm 1.4 inch 3.6 cm Mini speaker 1 W 8 Ω Black Plastic diaphragm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton K 36 MO small speaker
- Load carrying capacity RMS/Max: 1/2 W
- 3.6 cm (1.4") small speaker
- Good speech intelligibility
- Damp-proof according to IP65
Technical specifications
- Product type
Mini speaker
- Features
Plastic diaphragm
- Speaker size (cm)
3.6 cm
- Speaker size (inch)
1.4 inch
- RMS capacity
1 W
- Max. load
2 W
- Max. frequency
20000 Hz
- Min. frequency
300 Hz
- Impedance
8 Ω
- Sound pressure
77 dB

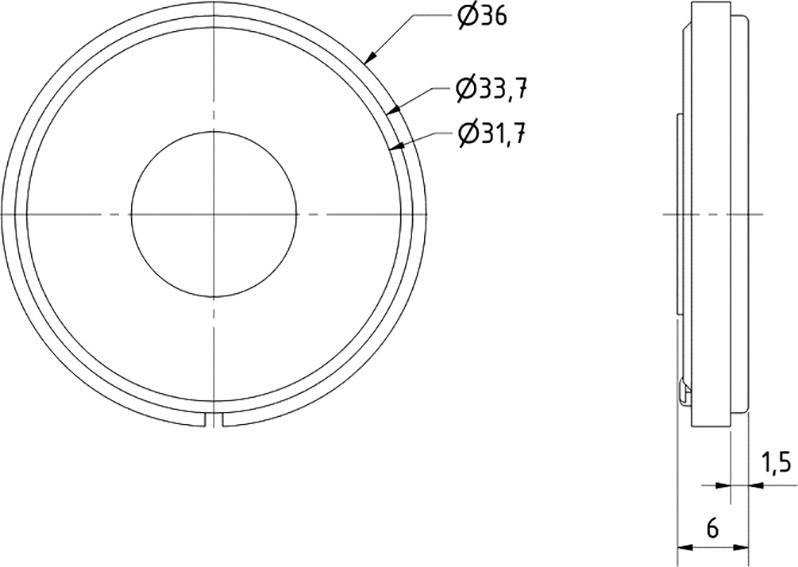

- Recess diameter
31 mm
- Recess depth
6 mm
- Weight
7 g
- Factory colour
Black
- Frequency range
300 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 2141399 Visaton K 36 MO - 8 Ohm 1.4 inch 3.6 cm Mini speaker 1 W 8 Ω Black Plastic diaphragm
User & Safety Instructions
User & Safety Instructions 2141399 Visaton K 36 MO - 8 Ohm 1.4 inch 3.6 cm Mini speaker 1 W 8 Ω Black Plastic diaphragm
Description

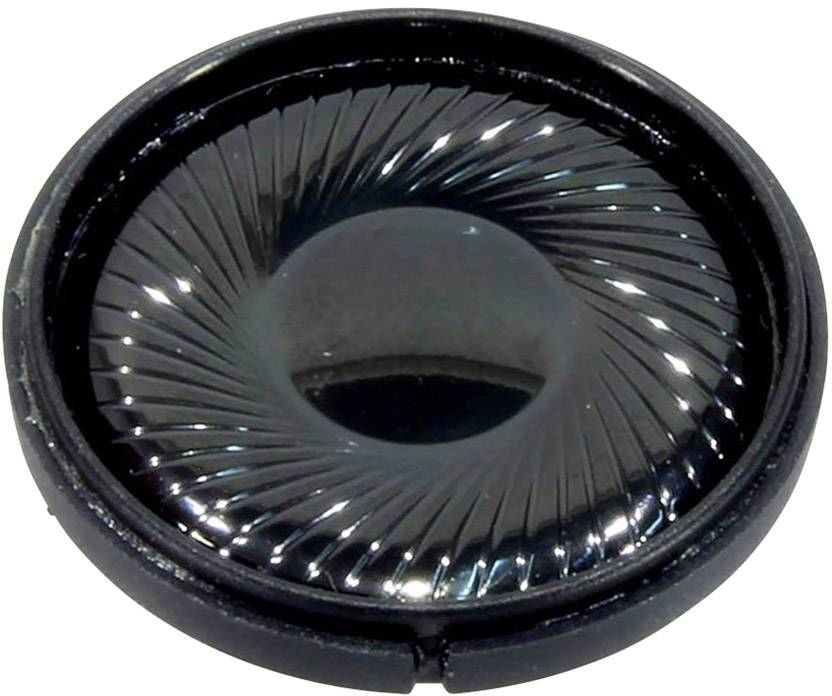

3.6 cm (1.4") small speaker with plastic basket and plastic sealing ring and plastic membrane. Smooth frequency response and good voice reproduction. Particularly suitable for use outdoors and under critical environmental influences (e.g. moisture).
This text is machine translated.
This text is machine translated.
Features
- Nominal load 1 W
- Music power 2 W
- Transmission range (-10 dB) - 300-20000 Hz.
