Visaton KL 13 - 100 V In-ceiling speaker 40 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton KL13 ceiling speakers
- 100-V and 70-V mains operation
- 8-ohm operation
- Good speech intelligibility
Technical specifications
- Product type
In-ceiling speaker
- Type
Spherical
- RMS capacity
25 W
- Max. load
40 W
- Power levels
6,25, 12,5, 25 W
- Impedance
8 Ω
- Max. sound pressure
105 dB
IP44
- Frequency range
150 - 18 000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
ABS plastic
- Weight
1.65 kg
- (Ø)
18.3 cm
- Dim
(Ø) 18.3 cm
Documents & Downloads
Datasheet
Datasheet 1487545 Visaton KL 13 - 100 V In-ceiling speaker 40 W 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1487545 Visaton KL 13 - 100 V In-ceiling speaker 40 W 100 V White 1 pc(s)
Description

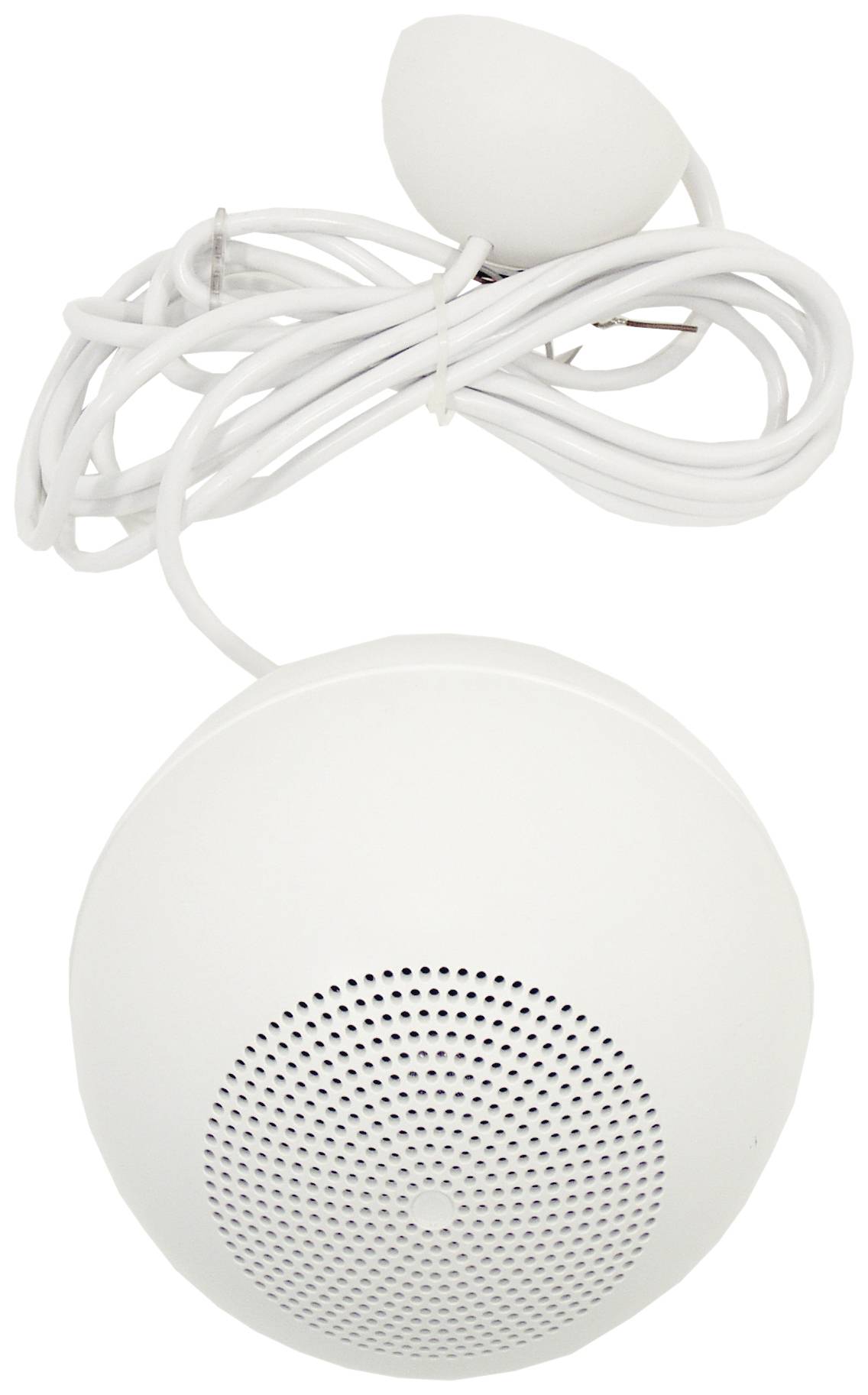

Shapely ball loudspeaker with a 13 cm wide-band system. Good efficiency, good speech intelligibility and pleasant sound. Connection to 100 V and 70-V networks as well as to amplifier with 4 ohms or 8-Ohm-Ausgang is possible.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 25 W
- Music resiliency: 40 W
- Transmission range (-10 dB) 150 - -18000 Hz
- Average Sound Pressure Level: 91 dB (1 W/1 m)
- Maximum sound pressure level 105 dB (25W/1m)
- Angle of radiation (-6dB): 57°/4000 Hz
- Net weight: 1.65 kg.
