Buy Visaton KT 100 V - 4 Ohm 4 inch 10.16 cm Subwoofer 25 W 4 Ω

Round speaker in black with four mounting tabs.

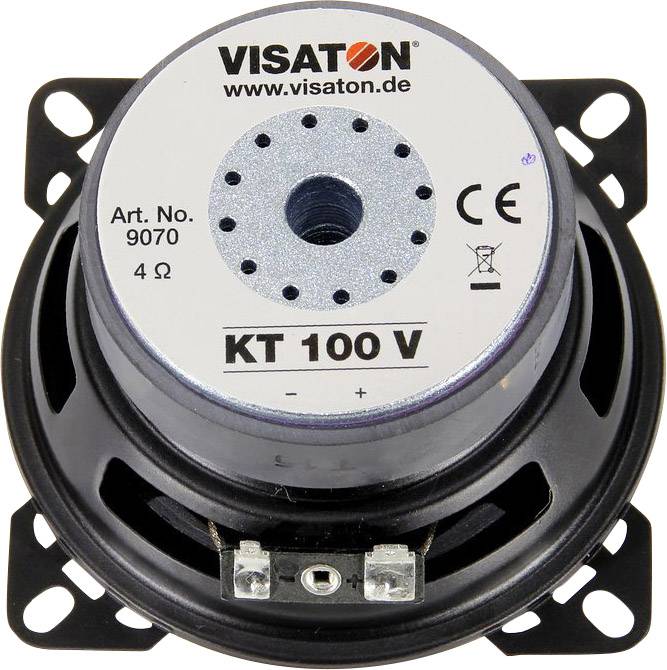

Visaton Loudspeaker, Model KT 100 V, Art. No. 9070, 4 Ohms. Black enclosure, silver front panel with central opening.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Visaton KT 100 V 4 inch woofer

Power handling capacity RMS/max. 25/40 W.
32-9500 Hz frequency range:
Installation diameter: 92 mm

Technical specifications

Product type: Subwoofer

Speaker size (inch): 4 inch

Speaker size (cm): 10.16 cm

RMS capacity: 25 W

Max. load: 40 W

Min. frequency: 32 Hz

Max. frequency: 9500 Hz

Impedance: 4 Ω

Sound pressure: 80 dB

Recess diameter: 92 mm

Recess depth: 51 mm

Weight: 466 g

Frequency range: 32 Hz - 9500 Hz

Documents & Downloads

Datasheet

Datasheet 1487528 Visaton KT 100 V - 4 Ohm 4 inch 10.16 cm Subwoofer 25 W 4 Ω

User & Safety Instructions

User & Safety Instructions 1487528 Visaton KT 100 V - 4 Ohm 4 inch 10.16 cm Subwoofer 25 W 4 Ω

Description

10 cm (4") woofer with low resonance frequency in a compact size. Large Hub possible through elastic rubber and deep magnet with minimal interference thanks to pole core bore and ventilation of the air gap. Simple basket for flexible mounting options.
