Visaton PAW 25 - 8 Ohm 10 inch 25 cm Mid-range speaker/subwoofer 300 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)

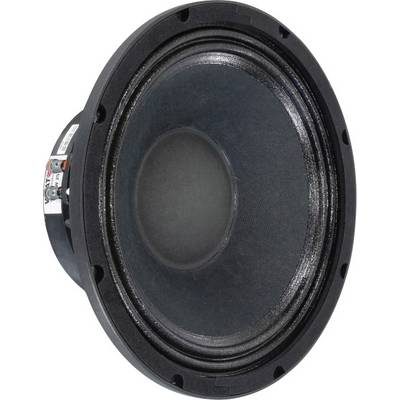

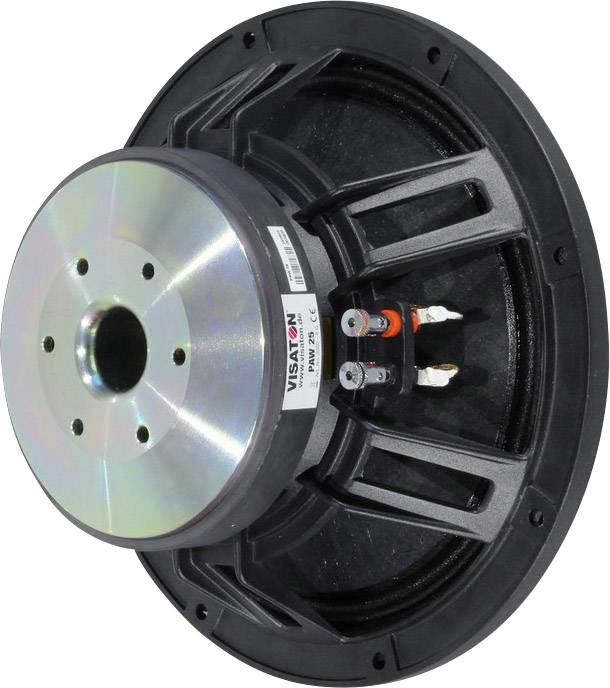

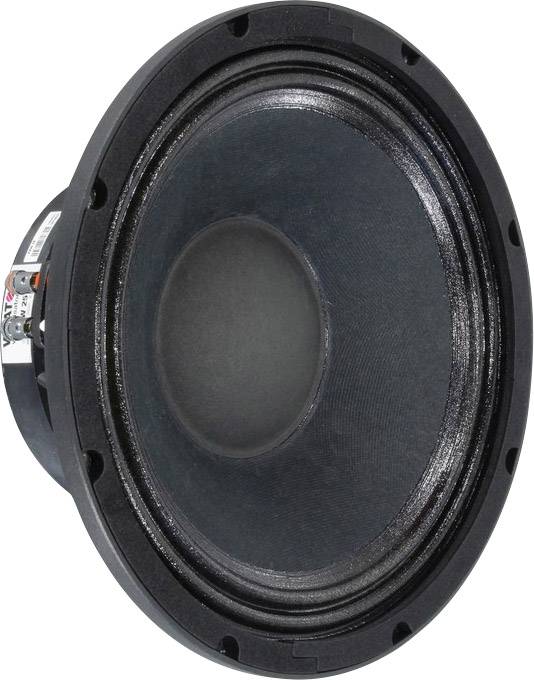

Visaton PAW 25 10 inch woofer
Highlights & Details
- Load capacity RMS/max. 300/450 W
- Installation diameter: 230 mm
Technical specifications
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
10 inch
- Speaker size (cm)
25 cm
- RMS capacity
300 W
- Max. load
450 W
- Min. frequency
57 Hz
- Max. frequency
4200 Hz
- Impedance
8 Ω
- Sound pressure
92 dB
- Recess diameter
23 cm
- Recess depth
10.7 cm
- Weight
3.61 kg
- Frequency range
57 Hz - 4200 Hz
Documents & Downloads
Datasheet
Datasheet 1487541 Visaton PAW 25 - 8 Ohm 10 inch 25 cm Mid-range speaker/subwoofer 300 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1487541 Visaton PAW 25 - 8 Ohm 10 inch 25 cm Mid-range speaker/subwoofer 300 W 8 Ω
Description
25 cm (10") woofer/mid-range for PA systems.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 300 W
- Music resiliency: 450 W
- Nominal impedance Z: 8 Ohm
- Transmission range (-10 dB): fu - 4200 Hz
- Average Sound Pressure Level: 92 dB (2.83 V/1 m)
- Resonance frequency fs: 52 Hz
- Upper Polplattenhoe: 8 mm
- Coil diameter: 65 mm
- Winding height: 15 mm
- Sound wall opening: 230 mm
- Net weight: 3.61 kg.
