Visaton PAW 30 ND - 8 Ohm 12 inch 30 cm Mid-range speaker/subwoofer 400 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)

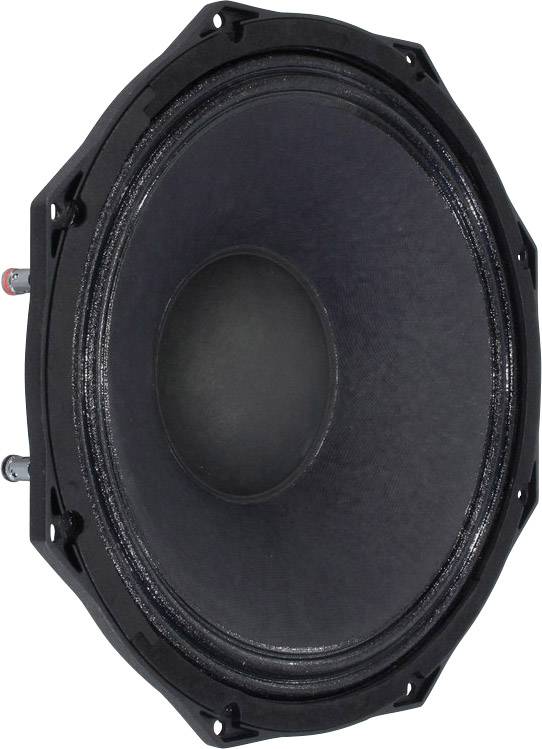

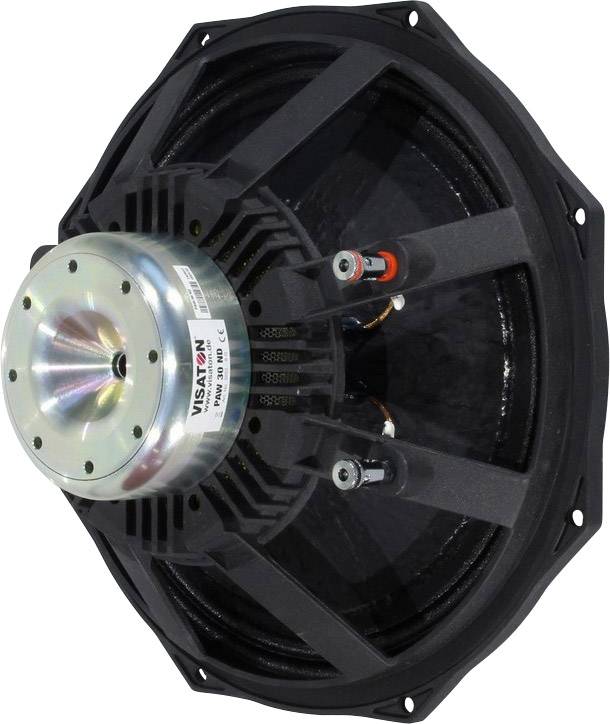

Visaton PAW 30 ND 12 inch woofer
Highlights & Details
- Load-carrying capacity RMS/max. 400/600 W
- Installation diameter: 286 mm
- 8-ecking
Technical specifications
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
12 inch
- Speaker size (cm)
30 cm
- RMS capacity
400 W
- Max. load
600 W
- Min. frequency
48 Hz
- Max. frequency
5500 Hz
- Impedance
8 Ω
- Sound pressure
93 dB
- Recess diameter
28.6 cm
- Recess depth
13.2 cm
- Weight
3 kg
- Frequency range
48 Hz - 5500 Hz
Documents & Downloads
Datasheet
Datasheet 1487542 Visaton PAW 30 ND - 8 Ohm 12 inch 30 cm Mid-range speaker/subwoofer 400 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1487542 Visaton PAW 30 ND - 8 Ohm 12 inch 30 cm Mid-range speaker/subwoofer 400 W 8 Ω
Description
30 cm (12") woofer/mid-range for PA systems.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 400 W
- Music resiliency: 600 W
- Nominal impedance Z: 8 Ohm
- Transmission range (-10 dB): fu - 5500 Hz
- Average Sound Pressure Level: 93 dB (2.83 V/1 m)
- Resonance frequency fs: 45 Hz
- Height of upper pole plate: 8 mm
- Coil diameter: 75mm
- Sound wall opening: 286 mm
- Net weight: 3.05 kg.
