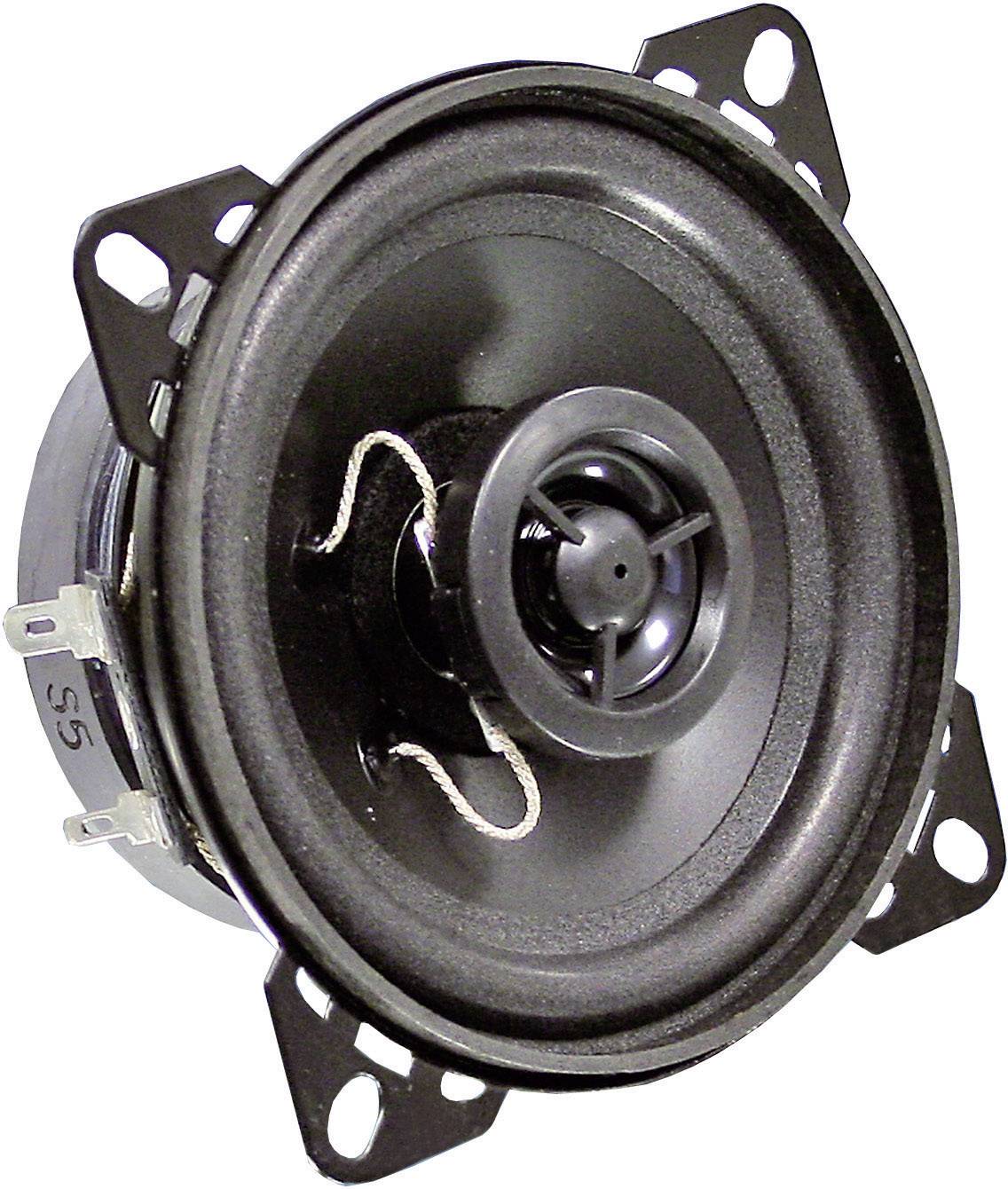

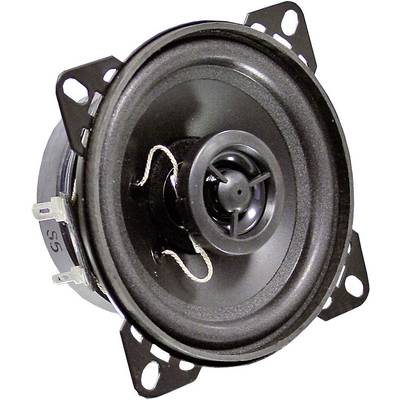

Visaton PX 10 - 4 Ohm 4 inch 10 cm 2-way coaxial speaker 20 W 4 Ω Water-proof PP diaphragm
EAN:
Part number:
Item no:
Datasheet (PDF)
10 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 16.80 / piece)
€
Only 10 Piece(s) available
Highlights & Details
Visaton PX 10 Koaxiallautsprecher
- Wasserfeste Polypropylenmembran
- Metallkorb
Technical specifications
- Product type
2-way coaxial speaker
- Speaker size (inch)
4 inch
- Speaker size (cm)
10 cm
- RMS capacity
20 W
- Max. load
30 W
- Min. frequency
70 Hz
- Max. frequency
18000 Hz
- Features
Water-proof PP diaphragm
- Impedance
4 Ω

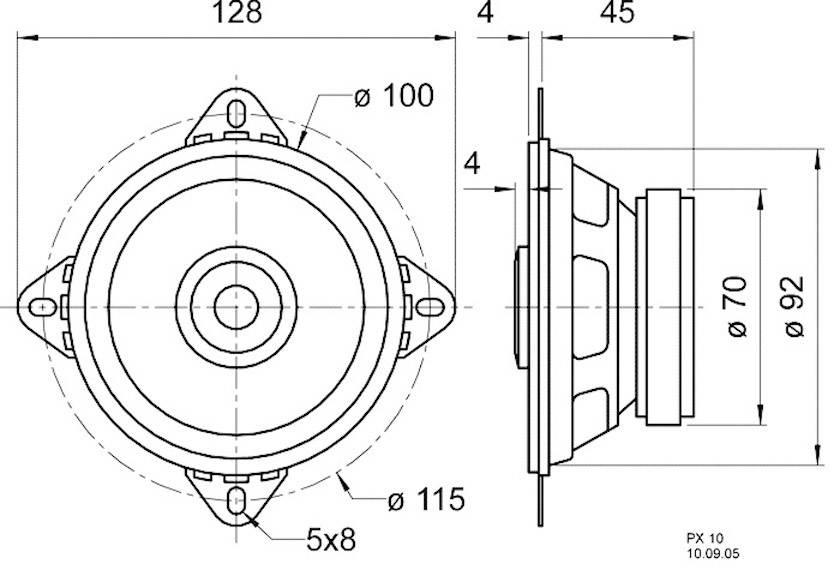

- Recess diameter
92 mm
- Recess depth
45 mm
- Weight
385 g
- Frequency range
70 Hz - 18000 Hz
- Max. RMS power
20/30 W
- Recess diameter (details)
92 mm
- Mounting depth
45 mm
- Frequency range
70 - 18 000 Hz
Documents & Downloads
Datasheet
Datasheet 305263 Visaton PX 10 - 4 Ohm 4 inch 10 cm 2-way coaxial speaker 20 W 4 Ω Water-proof PP diaphragm
Description
10 cm (4") 2-Wege-Koaxiallautsprecher mit Euro-Normkorb und Piezo-Hochtöner. Einfache Montage in Fahrzeugen mit Einbauorten für 10 cm-Lautsprecher.
