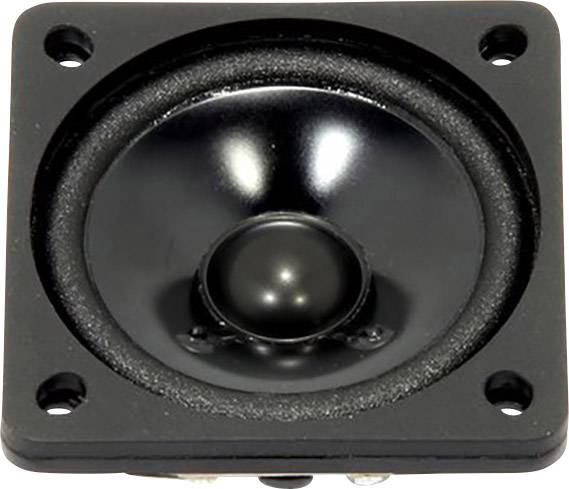

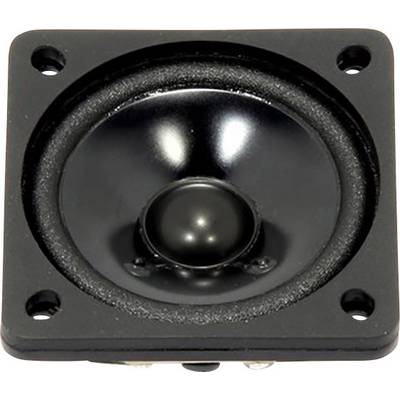

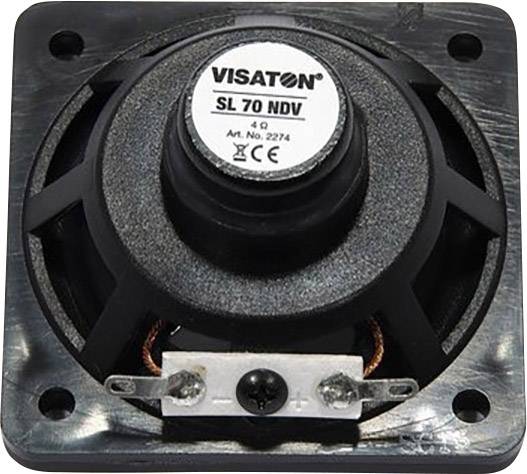

Visaton SL 70 NDV - 4 Ohm 2.5 inch 6.5 cm Wideband speaker 8 W 4 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton SL 70 NDV 2.5-inch wide-band speaker
- Load carrying capacity RMS/Max: 8/15 W
- Frequency range: 150-20 000 Hz
- Installation diameter: 63 mm
Technical specifications
- Product type
Wideband speaker
- Speaker size (cm)
6.5 cm
- Speaker size (inch)
2.5 inch
- RMS capacity
8 W
- Max. load
15 W
- Max. frequency
20000 Hz
- Min. frequency
150 Hz
- Impedance
4 Ω
- Sound pressure
87 dB
- Recess diameter
63 mm
- Recess depth
35.5 mm
- Weight
60 g
- Frequency range
150 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 1487529 Visaton SL 70 NDV - 4 Ohm 2.5 inch 6.5 cm Wideband speaker 8 W 4 Ω
User & Safety Instructions
User & Safety Instructions 1487529 Visaton SL 70 NDV - 4 Ohm 2.5 inch 6.5 cm Wideband speaker 8 W 4 Ω
Description
6.5 cm (2.5") broadband peaker with a balanced frequency response and a distinct highs. Especially suitable as a flush mounted speaker for music and speech playback as well as for PA systems. Waterproof and robust construction and due to various plastic materials. Thanks to neodymium drive extremely light-weight and compact.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 8 W
- Music resiliency: 15 W
- Nominal impedance Z: 4 Ohm
- Transmission range (-10 dB) 150 - -20000 Hz
- Average Sound Pressure Level: 87 dB (1 W/1 m)
- Resonance frequency fs: 220 Hz
- Coil diameter: 15mm
- Winding height: 3mm
- Sound wall opening: 63 mm
- Net weight: 0.06 kg
- Dc Resistance Rdc: 3.6 ohm
- Mechanical Q factor qms: 5.18
- Electrical Q factor Qes: 3.6
- Total-Q-factor Qts: 2:12.
