Buy Vishay 26MT160PBF Diode bridge D 63 1600 V 25 A 3-phase

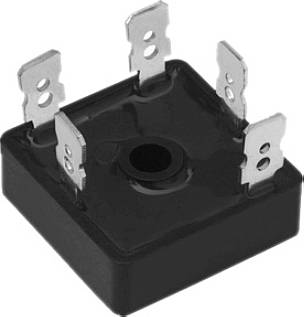

A rectangular rectifier with four metal terminals at the corners, used to convert alternating current into direct current.

Product type

Diode bridge

Enclosure

D 63

Configuration (diode)

3-phase

U(RRM)

1600 V

Forward current I(F)

25 A

Datasheet (PDF)

Fast track dispatch on Mon, 12 Oct

44 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.12 / piece)

€ 15.12

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type: 26MT160PBF

Product type: Diode bridge

Enclosure: D 63

Manufacturer: Vishay

Manuf. code: VIS

Configuration (diode): 3-phase

U(RRM): 1600 V

Forward current I(F): 25 A

Forward voltage U(F): 1.26 V

Forward voltage reference: 40 A

I(FSM) 50Hz: 360 A

I(FSM) 60Hz: 375 A

Reverse leakage current I(r): 100 µA

Reverse leakage current I(r) reference: 1600 V

Operating temperature (min.): -55 °C

Operating temperature (max.): +150 °C

Mounting type: Enclosure

Type: Bridge, Three Phase

Type: DO-203AA (DO-4)

Nominal current (details): 25 A

Documents & Downloads

Datasheet

Datasheet 164004 Vishay 26MT160PBF Diode bridge D 63 1600 V 25 A 3-phase

User & Safety Instructions

User & Safety Instructions 164004 Vishay 26MT160PBF Diode bridge D 63 1600 V 25 A 3-phase

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
