Vishay 293D686X9016D2TE3 Tantalum capacitor SMD 68 µF 16 V 10 % (L x W x H) 7.3 x 4.3 x 2.8 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Tantalum capacitor
Type
SMD
Capacity (elec.)
68 µF
Nominal voltage
16 V
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series: 293D
- Solder strength 260°C for 10 seconds
- Design_1: D
- Applications: Suitable for industrial applications, telecommunications infrastructure and general purposes
- Ceramic type: Tantalum
- Technology: Tantalum capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Properties_1: Standard industrial quality
- Connections: 100% Mattin standard
- Compatible with "high volume" automatic pick-and-place equipment
- Meets EIA-535-BAAC mechanical and performance requirements
- Qualified according to EIA-717
- Humidity sensitivity level 1
- Qualified for optical character recognition
- Capacity 68 µF
- Capacity_1: 68
- Unit of capacity: µF
- Capacity Tolerance 10%
- Equivalent Series Resistance (ESR): 0.6 ohms
- Nominal voltage DC 16 V
- Operating voltage, reduced: 10 V
- Packaging type
Tape
- Product type
Tantalum capacitor
- Type
SMD
- Capacity (elec.)
68 µF
- Nominal voltage
16 V
- Tolerance ±
10 %
- Material
Tantalum
- Length
7.3 mm
- Width
4.3 mm
- Height
2.8 mm
- Content
1 pc(s)
- Dim
(L x W x H) 7.3 x 4.3 x 2.8 mm
- RoHS-compliant
Yes
- Type
293D686X9016D2TE3
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- Certification marks
Complies with IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465096 Vishay 293D686X9016D2TE3 Tantalum capacitor SMD 68 µF 16 V 10 % (L x W x H) 7.3 x 4.3 x 2.8 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465096 Vishay 293D686X9016D2TE3 Tantalum capacitor SMD 68 µF 16 V 10 % (L x W x H) 7.3 x 4.3 x 2.8 mm 1 pc(s) Tape
Description

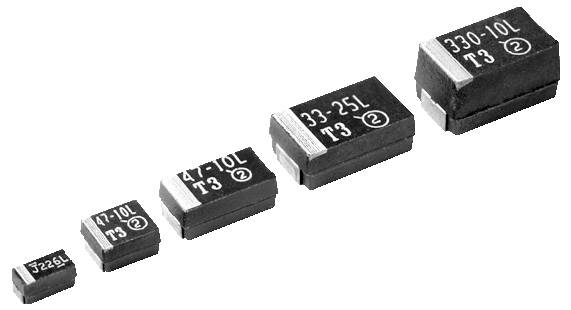

Vishay SMD Tantalum Capacitors
