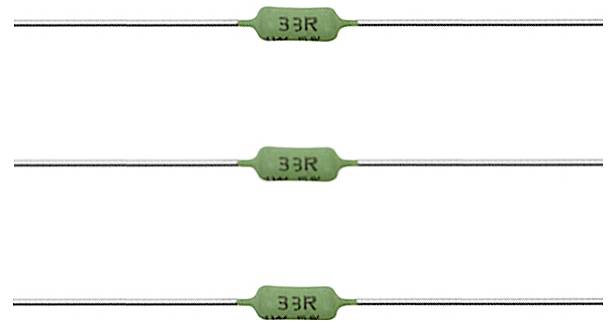

Vishay AC03000006809JAC00 Resistance wire 68 Ω Axial lead 3 W 5 % 1 pc(s)
Part number:
Item no:
Product type
Resistance wire
Resistance
68 Ω
Power rating
3 W
Content
1 pc(s)
Type
Axial lead
Datasheet (PDF)
Technical specifications
- Application: Automotive and industrial electronics, power supplies, white goods, pre-charging/discharging applications
- Series AC03
- Design 0614
- Delivery type: Belt
- Total length 53 mm.
- Diameter, Resistance element 4.8 mm
- Diameter, connection wire 0.8 mm
- Surface temperature, max. 250 °C
- Resistance tolerance: ±5 %
- Rated output: 3 W
- Load reduction: Linear from 40°C to 250°C (0W)
- Product type
Resistance wire
- Type
Axial lead
- Resistance
68 Ω
- Power rating
3 W
- Tolerance ±
5 %
- Length
13.0 mm
- (Ø)
4.8 mm
- Max. temperature
+250 °C
- Content
1 pc(s)
- Dim
(Ø x L) 4.8 mm x 13.0 mm
- RoHS-compliant
Yes
- Type
AC03000006809JAC00
- Mounting type
PCB mount
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3464073 Vishay AC03000006809JAC00 Resistance wire 68 Ω Axial lead 3 W 5 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464073 Vishay AC03000006809JAC00 Resistance wire 68 Ω Axial lead 3 W 5 % 1 pc(s)
Description
Wire resistors 3W 5% 0614 series AC03
This text is machine translated.
This text is machine translated.
Features
- • Welding contact of resistance wire and cap
- • Ceramic core
- • Non-flammable insulation material (UL94V-0)
