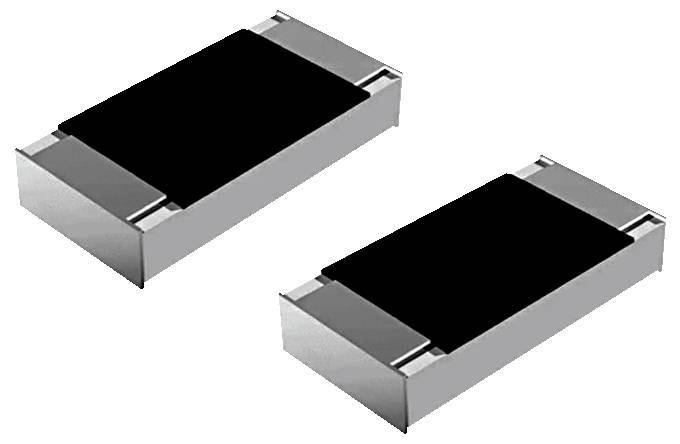

Vishay CRCW020168K0FKTDBC SMD resistor 68 kΩ SMD 0201 0.05 W 1 % 200 ppm/°C 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
SMD resistor
Type
0201
Resistance
68 kΩ
Power rating
0.05 W
Datasheet (PDF)
Highlights & Details
Vishay SMD thick film 0201 50mW 1% 68K strap
Our service for you
Technical specifications
- Application: Large-scale series product for commercial applications
- Series CRCW0201BC
- Design 0201
- Delivery type: Belt
- Weight: 0.14 g
- Solder-able 260°C / 10s
- Resistance tolerance: ±1 %
- Rated output: 0.05 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 30 V DC
- Max. OPERATING VOLTAGE (AC) 30 V AC
- Insulation voltage 50 V
- 0.3 x 10^-9/hr failure rate
- Packaging type
Tape on Full reel
- Product type
SMD resistor
- Type
SMD
- Type
0201
- Resistance
68 kΩ
- Power rating
0.05 W
- Tolerance ±
1 %
- Temperature coefficient
200 ppm/°C
- Length
0.6 mm
- Width
0.3 mm
- Height
0.23 mm
- (Ø)
180 mm
- Content
1 pc(s)
- Dim
(Ø x H) 180 mm x 0.23 mm
- RoHS-compliant
Yes
- Type
CRCW020168K0FKTDBC
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- Insulation resistance
1,000 MΩ
Documents & Downloads
Datasheet
Datasheet 3465102 Vishay CRCW020168K0FKTDBC SMD resistor 68 kΩ SMD 0201 0.05 W 1 % 200 ppm/°C 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3465102 Vishay CRCW020168K0FKTDBC SMD resistor 68 kΩ SMD 0201 0.05 W 1 % 200 ppm/°C 1 pc(s) Tape on Full reel
Description
SMD Thick Film Resistors 50mW 1% 0201
This text is machine translated.
This text is machine translated.
Features
- • SMD Thick Film Resistance
- • Lead-free thick film chip resistors made of raw material
- • Pure tin solder contacts on nickel barrier for lead-free and lead-containing soldering processes
- • Metal glaze on high-quality ceramic
- • Original packaging of the manufacturer
- - CRCW0201_TDBC: 10,000 on 7 inch coil, Ø 180mm
