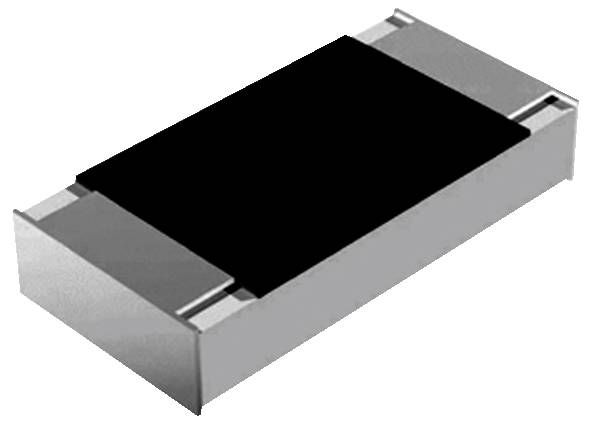

Vishay CRCW04028K20FKTDBC CRCW04028K20FKTDBC SMD resistor 8.2 kΩ SMD 0402 0.063 W 1 % 100 ppm/°C 1 pc(s) Tape on Full re
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
SMD resistor
Type
0402
Resistance
8.2 kΩ
Power rating
0.063 W
Datasheet (PDF)
Technical specifications
- Application: Large-scale series product for commercial applications
- Series CRCW0402BC
- Design 0402
- Delivery type: Belt
- Solder-able 260°C / 10s
- Resistance tolerance: ±1 %
- Rated power: 0.063 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 50 V DC
- Max. OPERATING VOLTAGE (AC) 50 V AC
- 0.3 x 10^-9/hr failure rate
- Packaging type
Tape on Full reel
- Product type
SMD resistor
- Type
SMD
- Type
0402
- Resistance
8.2 kΩ
- Power rating
0.063 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
1 mm
- Width
0.5 mm
- Height
0.35 mm
- Content
1 pc(s)
- Dim
(L x W x H) 1 x 0.5 x 0.35 mm
- RoHS-compliant
Yes
- Type
CRCW04028K20FKTDBC
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465106 Vishay CRCW04028K20FKTDBC CRCW04028K20FKTDBC SMD resistor 8.2 kΩ SMD 0402 0.063 W 1 % 100 ppm/°C 1 pc(s) Tape on Full re
User & Safety Instructions
User & Safety Instructions 3465106 Vishay CRCW04028K20FKTDBC CRCW04028K20FKTDBC SMD resistor 8.2 kΩ SMD 0402 0.063 W 1 % 100 ppm/°C 1 pc(s) Tape on Full re
Description
SMD Thick Film Resistors 63mW 1% 0402
This text is machine translated.
This text is machine translated.
Features
- • SMD Thick Film Resistance
- • Lead-free thick film chip resistors made of raw material
- • Pure tin solder contacts on nickel barrier for lead-free and lead-containing soldering processes
- • Metal glaze on high-quality ceramic
- • Original packaging of the manufacturer
- - CRCW0402_TDBC: 10,000 on 7 inch coil, Ø 180mm
