Vishay CRCW0805330RFKTBBC SMD resistor 330 Ω SMD 0805 0.125 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type

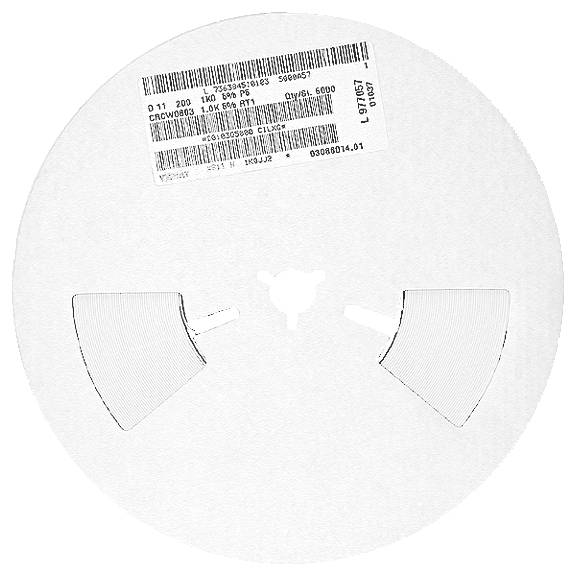

Tape on Full reel
Product type
SMD resistor
Type
0805
Resistance
330 Ω
Power rating
0.125 W
Datasheet (PDF)
Highlights & Details
Vishay SMD-thick layer 0805 1/8W 1% 330R belt
Our service for you
Technical specifications
- Application: For standard applications
- Series CRCW0805BC
- Design 0805
- Delivery type: Belt
- Resistance tolerance: ±1 %
- Thermal resistance 440 °C/W
- Rated output: 0.125 W
- Load reduction: Linear from 70°C to 125°C (0W)
- Max. OPERATING VOLTAGE (DC) 150 V DC
- Max. OPERATING VOLTAGE (AC) 150 V AC
- 3 x 10^-9/hr failure rate
- Climate category: 55/125/56
- Packaging type
Tape on Full reel
- Product type
SMD resistor
- Type
SMD
- Type
0805
- Resistance
330 Ω
- Power rating
0.125 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
2 mm
- Width
1.25 mm
- Height
0.45 mm
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 0.45 mm
- RoHS-compliant
Yes
- Type
CRCW0805330RFKTBBC
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
- Certification marks
EN60115-1, EN140400, EN140401-802, IEC 60068-2-X, IEC 60286-3
Documents & Downloads
Datasheet
Datasheet 3465162 Vishay CRCW0805330RFKTBBC SMD resistor 330 Ω SMD 0805 0.125 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3465162 Vishay CRCW0805330RFKTBBC SMD resistor 330 Ω SMD 0805 0.125 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
Description
SMD Thick Film Resistors 1/8W 1% 0805
This text is machine translated.
This text is machine translated.
Features
- SMD Thick Film Resistors
- • Resistance layer on high-quality ceramic
- • Protective glass
- • Good stability against environmental influences
- • Original packaging of the manufacturer
- - CRCW0805_TABC: 5,000 on 7 inch coil, Ø 180mm
- - CRCW0805_TBBC: 10,000 on 10-inch coil, Ø 254mm
