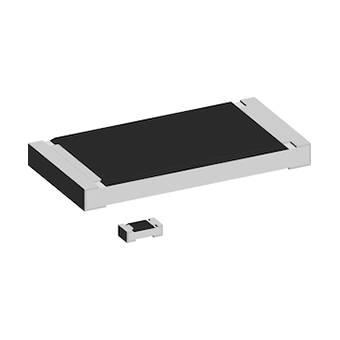

Vishay CRCW120615K0FKEA SMD resistor 15 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
SMD resistor
Type
1206
Resistance
15 kΩ
Power rating
0.25 W
Datasheet (PDF)
Highlights & Details
Vishay SMD-thick film 1206 1/4W 1% 15K belt
Our service for you
Technical specifications
- ESD packing ESD
- Series D25/CRCW1206
- Design 1206
- Delivery type: Belt
- Resistance tolerance: ±1 %
- Thermal resistance 220 °C/W
- Rated output: 0.25 W
- Load reduction: Linear from 70° to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 200 V DC
- Max. OPERATING VOLTAGE (AC) 200 V AC
- 0.1 x 10^-9/hr failure rate
- Climate category: 55/125/56
- Qualification: AEC-Q200
- Packaging type
Tape on Full reel
- Product type
SMD resistor
- Type
SMD
- Type
1206
- Resistance
15 kΩ
- Power rating
0.25 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
3.2 mm
- Width
1.6 mm
- Height
0.55 mm
- Content
1 pc(s)
- Dim
(L x W x H) 3.2 x 1.6 x 0.55 mm
- RoHS-compliant
Yes
- Type
CRCW120615K0FKEA
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3465154 Vishay CRCW120615K0FKEA SMD resistor 15 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
Datasheet 3465154 Vishay CRCW120615K0FKEA SMD resistor 15 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3465154 Vishay CRCW120615K0FKEA SMD resistor 15 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
Description
SMD Thick Film Resistors 1/4W 1% 1206
This text is machine translated.
This text is machine translated.
Features
- • SMD Thick Film Resistance
- • Resistance film on high-quality ceramic
- • Protective glass
- • Excellent stability in different environmental conditions
- • Original packaging of the manufacturer: Perforated strips according to IEC 60286-3, type 1a
- - CRCW1206_EA: 5,000 on 7-inch coil, Ø 180mm
