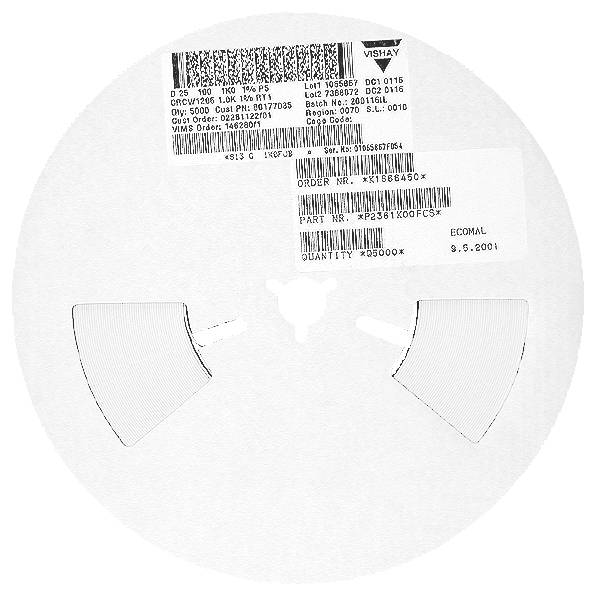

Vishay CRCW12066K80FKTBBC SMD resistor 6.8 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
SMD resistor
Type
1206
Resistance
6.8 kΩ
Power rating
0.25 W
Datasheet (PDF)
Highlights & Details
Vishay SMD-thickness layer 1206 1/4W 1% 6K8 belt
Our service for you
Technical specifications
- Series CCW1206BC
- Design 1206
- Delivery type: Belt
- Resistance tolerance: ±1 %
- Thermal resistance 220 °C/W
- Rated output: 0.25 W
- Load reduction: Linear from 70°C to 125°C (0W)
- Max. OPERATING VOLTAGE (DC) 200 V DC
- Max. OPERATING VOLTAGE (AC) 200 V AC
- 3 x 10^-9/hr failure rate
- Climate category: 55/125/56
- Packaging type
Tape on Full reel
- Product type
SMD resistor
- Type
SMD
- Type
1206
- Resistance
6.8 kΩ
- Power rating
0.25 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
3.2 mm
- Width
1.6 mm
- Height
0.55 mm
- Content
1 pc(s)
- Dim
(L x W x H) 3.2 x 1.6 x 0.55 mm
- RoHS-compliant
Yes
- Type
CRCW12066K80FKTBBC
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
- Certification marks
EN60115-1, EN140400, EN140401-802, IEC 60068-2-X, IEC 60286-3
Documents & Downloads
Datasheet
Datasheet 3465169 Vishay CRCW12066K80FKTBBC SMD resistor 6.8 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3465169 Vishay CRCW12066K80FKTBBC SMD resistor 6.8 kΩ SMD 1206 0.25 W 1 % 100 ppm/°C 1 pc(s) Tape on Full reel
Description
SMD Thick Film Resistors 0.25 1% 1206
This text is machine translated.
This text is machine translated.
Features
- SMD Thick Film Resistors
- • Resistance layer on high-quality ceramic
- • Protective glass
- • Excellent stability against environmental influences
- • Original packaging of the manufacturer
- - CRCW1206_TABC: 5,000 on 7-inch coil, Ø 180mm
- - CRCW1206_TBBC: 10,000 on 10-inch coil, Ø 254mm
