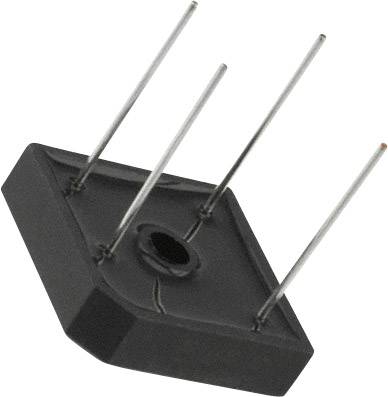

Vishay GBPC2502W Diode bridge GBPC-W 200 V 25 A 1-phase
EAN:
Part number:
Item no:
Product type
Diode bridge
Enclosure
GBPC-W
Configuration (diode)
1-phase
U(RRM)
200 V
Forward current I(F)
25 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Technical specifications
- Type
GBPC2502W
- Product type
Diode bridge
- Enclosure
GBPC-W
- Manufacturer
Vishay
- Manuf. code
VIS
- Configuration (diode)
1-phase
- U(RRM)
200 V
- Forward current I(F)
25 A
- Forward voltage U(F)
1.1 V
- Forward voltage reference
12.5 A
- I(FSM) 60Hz
300 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
200 V
- Operating temperature (min.)
-55 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Through-hole
- Type
Bridge, Single
- Description
200 V/25 A
Documents & Downloads
Datasheet
Datasheet 164160 Vishay GBPC2502W Diode bridge GBPC-W 200 V 25 A 1-phase
User & Safety Instructions
User & Safety Instructions 164160 Vishay GBPC2502W Diode bridge GBPC-W 200 V 25 A 1-phase
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
