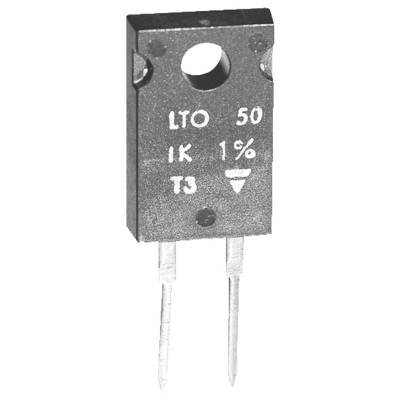

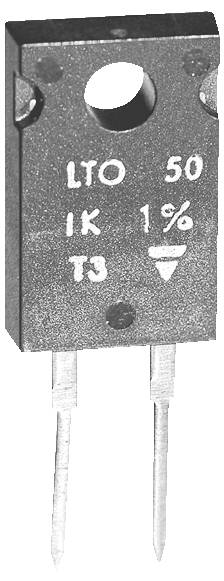

Vishay LTO050F100R0FTE3 HV resistor 100 Ω TO 220 50 W 1 % 1 pc(s)
Part number:
Item no:
Product type
HV resistor
Resistance
100 Ω
Power rating
50 W
Content
1 pc(s)
Type
TO 220
Datasheet (PDF)
Highlights & Details
Vishay Thick Film TO220 50W 1% 100R
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series LTO50F
- Design: TO220
- Delivery form: Rod
- Total height 28.9 mm
- Weight: 2 g
- Resistance tolerance: ±1 %
- Nominal load, with heat sink 50 W
- Nominal load without heat sink 2.5 W
- Rated output: 50 W
- Max. OPERATING VOLTAGE (DC) 250 V DC
- Max. OPERATING VOLTAGE (AC) 250 V AC
- Test voltage 1,500 V
- Thermal resistance 2.5 K/W.
- Climate category: 55/155/56
- Product type
HV resistor
- Type
TO 220
- Resistance
100 Ω
- Power rating
50 W
- Tolerance ±
1 %
- Temperature coefficient
150 ppm/°C
- Length
10.4 mm
- Width
3.2 mm
- Height
16.2 mm
- CS
5.08 mm
- Max. temperature
+155 °C
- Min. temperature
55 °C
- Content
1 pc(s)
- Dim
(L x W x H) 10.4 x 3.2 x 16.2 mm
- RoHS-compliant
Yes
- Type
LTO050F100R0FTE3
- Mounting type
PCB mount
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
Documents & Downloads
Datasheet
Datasheet 3464075 Vishay LTO050F100R0FTE3 HV resistor 100 Ω TO 220 50 W 1 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464075 Vishay LTO050F100R0FTE3 HV resistor 100 Ω TO 220 50 W 1 % 1 pc(s)
Description
Thick film resistors 50W 1% TO220
This text is machine translated.
This text is machine translated.
Features
- • 50W at 25°C and mounted heatsink (optional)
- • Low inductance
- • Compact design
- • Simple mounting through TO220 housing
- • Complete ceramic enclosure (without metal sheet)
