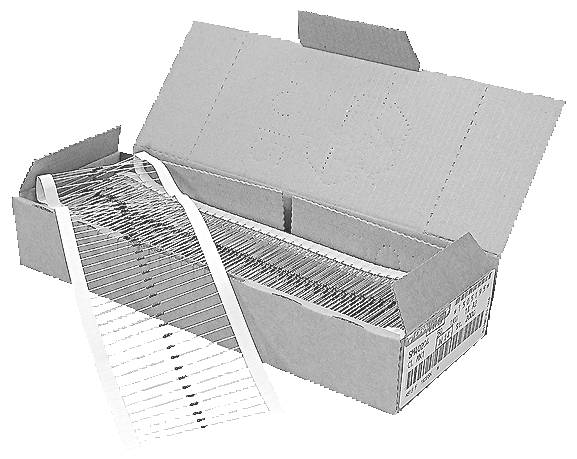

Vishay MBA02040C1500FCT00 Metal film resistor 150 Ω SMD 0204 0.4 W 1 % 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Metal film resistor
Resistance
150 Ω
Power rating
0.4 W
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series MBA/SMA
- Size 0204
- Delivery type: Belt
- Weight: 0.125 g
- Diameter, Resistance element 1.6 mm
- Resistance tolerance: ±1 %
- Rated output: 0.4 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Insulation voltage 300 V
- Packaging type
Tape
- Product type
Metal film resistor
- Type
SMD
- Type
0204
- Resistance
150 Ω
- Power rating
0.4 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/°C
- Length
3.6 mm
- (Ø)
1.6 mm
- Content
1 pc(s)
- Dim
(Ø x L) 1.6 mm x 3.6 mm
- RoHS-compliant
Yes
- Type
MBA02040C1500FCT00
- Mounting type
PCB mount
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3466106 Vishay MBA02040C1500FCT00 Metal film resistor 150 Ω SMD 0204 0.4 W 1 % 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3466106 Vishay MBA02040C1500FCT00 Metal film resistor 150 Ω SMD 0204 0.4 W 1 % 1 pc(s) Tape
Description
Metal film resistors 0.4W TK50 0204
