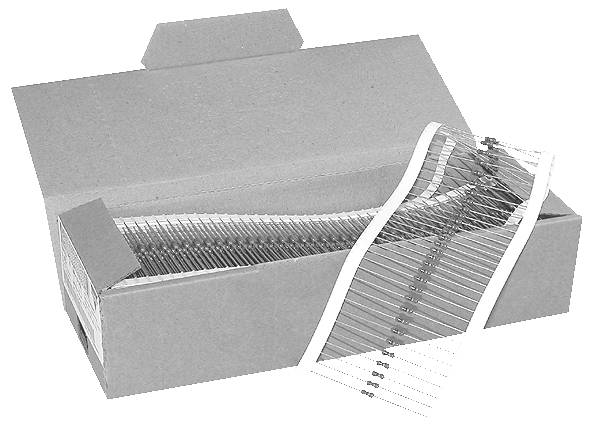

Vishay MBB0207VD5000BCT00 Metal film resistor 500 Ω 0207 0.4 W 0.1 % 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Metal film resistor
Resistance
500 Ω
Power rating
0.4 W
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Vishay Metal clip 0207 0.4W 0.1% 500R belt
Our service for you
Technical specifications
- Application: Testing and measuring instruments, industrial electronics, medical electronics
- ESD Packaging: No ESD
- Series MBB/SMA
- Size 0207
- Delivery type: Belt
- Total length: 62.3 mm.
- Weight: 0.22 g
- Diameter, Resistance element 2.5 mm
- Diameter, connection wire 0.6 mm
- Resistance tolerance: ±0.1 %
- Rated output: 0.4 W
- Load reduction: Linear from 70°C to 125°C (0W)
- Max. OPERATING VOLTAGE (DC) 350 V DC
- Max. OPERATING VOLTAGE (AC) 350 V AC
- Insulation voltage 500 V
- Temperature coefficient, typ.: 25 ppm/°
- 0.1 x 10^-9/hr failure rate
- Approvals IECQ-CECC
- Packaging type
Tape
- Product type
Metal film resistor
- Type
0207
- Resistance
500 Ω
- Power rating
0.4 W
- Tolerance ±
0.1 %
- Temperature coefficient
25 ppm/°C
- Length
6.3 mm
- (Ø)
2.5 mm
- Content
1 pc(s)
- Dim
(Ø x L) 2.5 mm x 6.3 mm
- RoHS-compliant
Yes
- Type
MBB0207VD5000BCT00
- Mounting type
PCB mount
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- Certification marks
EN 140101-806, EN 60115-1, EN 140100, IEC 60068
Documents & Downloads
Datasheet
Datasheet 3465158 Vishay MBB0207VD5000BCT00 Metal film resistor 500 Ω 0207 0.4 W 0.1 % 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465158 Vishay MBB0207VD5000BCT00 Metal film resistor 500 Ω 0207 0.4 W 0.1 % 1 pc(s) Tape
Description
Precision metal film resistor 0.4W 0,
This text is machine translated.
This text is machine translated.
Features
- • Corresponds to CECC 40101-806
- • Low temperature coefficient (TC)
- • Excellent stability
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
