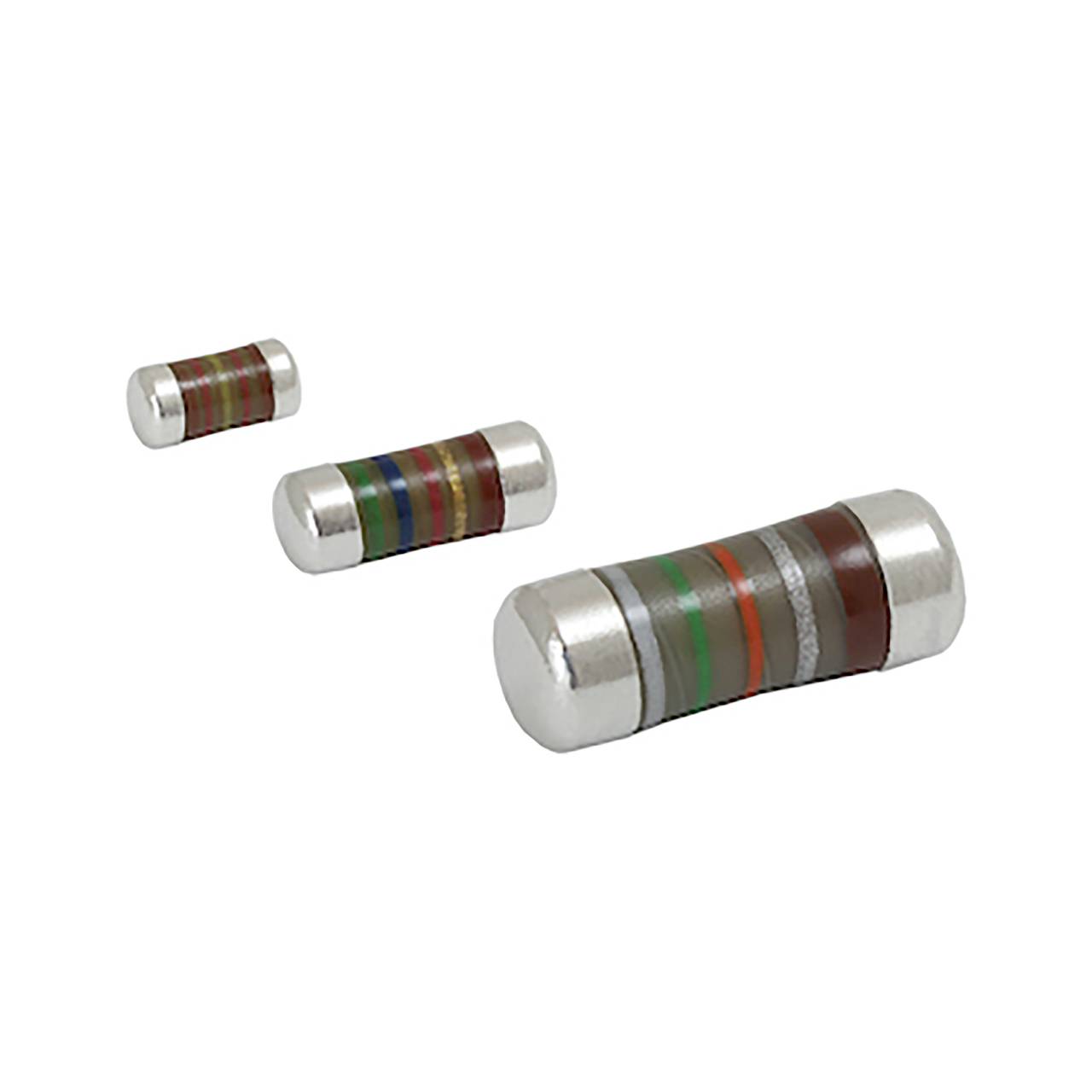

Vishay MMA02040C1004FB300 Metal film resistor 1 MΩ 0204 0.25 W 1 % 1 pc(s)
Part number:
Item no:
Product type
Metal film resistor
Resistance
1 MΩ
Power rating
0.25 W
Content
1 pc(s)
Type
0204
Datasheet (PDF)
Highlights & Details
Vishay MiniMelf resistor 0204 1/4W 1% 1M belt
Our service for you
Technical specifications
- Application: Automotive, telecommunication, industry, medical devices
- ESD Packaging: No ESD
- Series MMA0204
- Size 0204
- Delivery type: Belt
- Total length: 3.6 mm.
- Diameter, Resistance element 1.4 mm
- Resistance tolerance: ±1 %
- Rated output: 0.25 W
- Power loss, max. 0.4 W.
- Load reduction: Linear from 70°C to 125°C (0W)
- Max. OPERATING VOLTAGE (DC) 200 V DC
- Max. OPERATING VOLTAGE (AC) 200 V AC
- Temperature coefficient, typ.: 50 ppm/°
- 0.05 x 10^-9/hr failure rate
- Qualification: AEC-Q200
- Approvals IECQ-CECC
- Product type
Metal film resistor
- Type
0204
- Resistance
1 MΩ
- Power rating
0.25 W
- Tolerance ±
1 %
- (Ø)
1.4 mm
- Content
1 pc(s)
- Dim
(Ø) 1.4 mm
- RoHS-compliant
Yes
- Type
MMA02040C1004FB300
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
- Certification marks
EN 140401-803, EN 60115-1, EN60115-8, IEC60068
Documents & Downloads
Datasheet
Datasheet 3463990 Vishay MMA02040C1004FB300 Metal film resistor 1 MΩ 0204 0.25 W 1 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463990 Vishay MMA02040C1004FB300 Metal film resistor 1 MΩ 0204 0.25 W 1 % 1 pc(s)
Description
MiniMelf metal film resistors 0.25W
This text is machine translated.
This text is machine translated.
Features
- • Professional thin film MELF resistance
- • IECQ-CECC-tested according to EN 140401-803
- • Advanced metal film technology
- • Outstanding overall stability: Exceeds class 0.25
- • Best pulse strength
- • Intrinsic sulfur resistance
