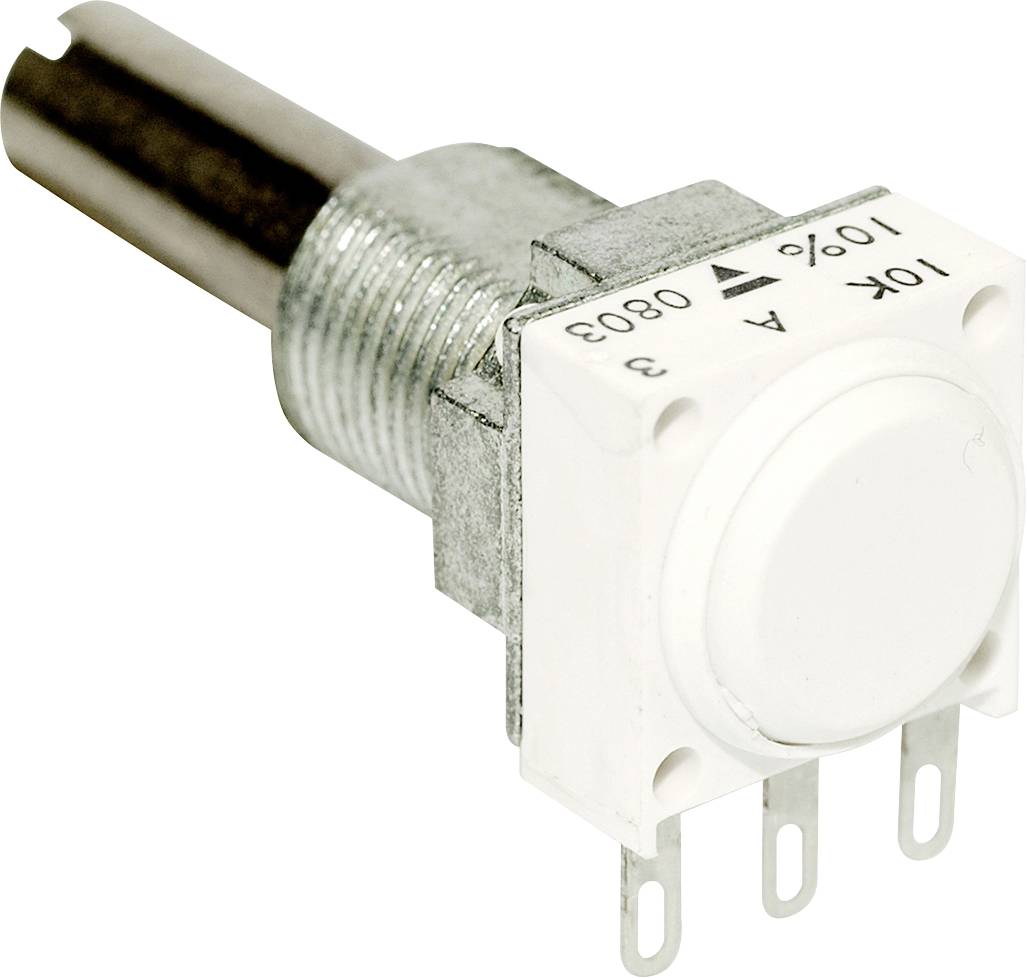

Vishay P11S1V0FLSY00103KA Precision potentiometer 1 W 10 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Precision potentiometer
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
1 W
Axle type
Metal
Datasheet (PDF)
Highlights & Details
Cermet potentiometers mono linear 1W 6mm-axle
- 10 kΩ
- linear
Technical specifications
- Product type
Precision potentiometer
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
1 W
- Connection
Print
- Mechanical angle
300°
- Electrical angle
270°
- Type
horizontal
- Axle type
Metal
- Axle Ø
6 mm
- Length
12.5 mm
- Width
12.5 mm
- Height
11.1 mm
- Min. temperature
-55 °C
- Max. temperature
+125 °C
- Temperature coefficient
150 ppm/°C
- Tolerance ±
10 %
- Content
1 pc(s)
- Type
P11S1V0FLSY00103KA
- Dim
(L x W x H) 12.5 x 12.5 x 11.1 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3027281 Vishay P11S1V0FLSY00103KA Precision potentiometer 1 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3027281 Vishay P11S1V0FLSY00103KA Precision potentiometer 1 W 10 kΩ 1 pc(s)
Description
Scope of delivery
- P11S1V0FLSY00103KA.
