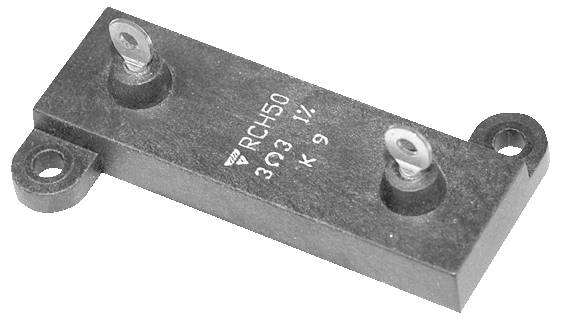

Vishay RCH50S10000JS06 HV resistor 1 kΩ Radial lead 50 W 5 % 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
HV resistor
Resistance
1 kΩ
Power rating
50 W
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Vishay Power thick layer 50W 5% 1K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series RCH50
- Delivery form: Loose
- Weight: 12 g
- Resistance tolerance: ±5 %
- Nominal load, with heat sink 50 W
- Nominal load without heat sink 5.5 W
- Rated output: 50 W
- Max. OPERATING VOLTAGE (DC) 1,285 V DC
- Max. OPERATING VOLTAGE (AC) 1,285 V AC
- Test voltage 3,500 V
- Thermal resistance 0.8 K/W.
- Climate category: 55/125/56
- Packaging type
Bulk
- Product type
HV resistor
- Type
Radial lead
- Resistance
1 kΩ
- Power rating
50 W
- Tolerance ±
5 %
- Temperature coefficient
150 ppm/°C
- Length
48.0 mm
- Width
29.5 mm
- Height
9.0 mm
- Max. temperature
125 °C
- Threshold voltage
3.500 V
- Content
1 pc(s)
- Dim
(L x W x H) 48.0 x 29.5 x 9.0 mm
- RoHS-compliant
Yes
- Type
RCH50S10000JS06
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
Documents & Downloads
Datasheet
Datasheet 3464084 Vishay RCH50S10000JS06 HV resistor 1 kΩ Radial lead 50 W 5 % 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3464084 Vishay RCH50S10000JS06 HV resistor 1 kΩ Radial lead 50 W 5 % 1 pc(s) Bulk
Description
Thick film resistors 50W 5%
This text is machine translated.
This text is machine translated.
Features
- • Power thick film resistor
- • 50W at 25°C and mounted heatsink (optional)
- • Compact design
- - easy installation
- • High insulation resistance 10^6 MOhm
