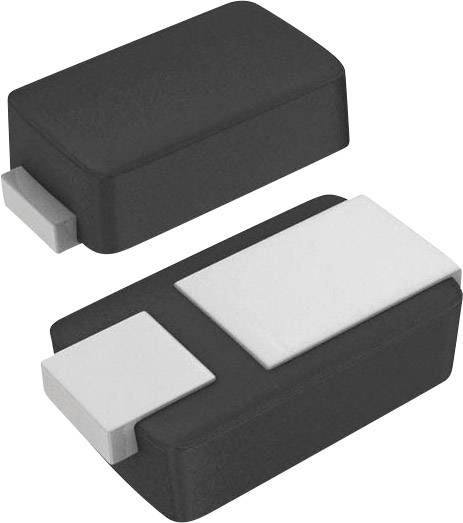

Vishay Schottky rectifier MSS1P6-M3/89A MicroSMP 60 V Single
EAN:
Part number:
Item no:
Product type
Schottky rectifier
Enclosure
MicroSMP
Reverse voltage U(R)
60 V
Forward current I(F)
1 A
Configuration (diode)
Single
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.35
50
9% = € 0.03
€ 0.32
100
11% = € 0.04
€ 0.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.35 / piece)
€ 0.35
plus VAT.
14-day return policy included
Technical specifications
- Type
MSS1P6-M3/89A
- Product type
Schottky rectifier
- Enclosure
MicroSMP
- Manufacturer
Vishay
- Manuf. code
VIS
- Reverse voltage U(R)
60 V
- Forward current I(F)
1 A
- Reverse leakage current I(r)
150 µA
- Configuration (diode)
Single
- Series
eSMP®
- Forward voltage U(F)
680 mV
- Forward voltage reference
1 A
- Reverse leakage current I(r) reference
60 V
- Diode capacitance C(D)
40 pF
- Operating temperature (min.)
-55 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Surface-mount
- Content
1 pc(s)
