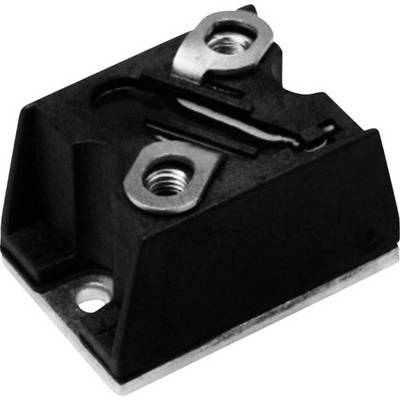

Image similar
Image similar
Vishay Standard diode VS-T40HFL100S05 D 55 1000 V 40 A
EAN:
Part number:
Item no:
Product type
Standard diode
Enclosure
D 55
Forward current I(F)
40 A
Reverse voltage U(R)
1000 V
Forward voltage U(F)
1.6 V
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Technical specifications
- Type
VS-T40HFL100S05
- Product type
Standard diode
- Enclosure
D 55
- Manufacturer
Vishay
- Manuf. code
VIS
- Forward current I(F)
40 A
- Reverse voltage U(R)
1000 V
- Forward voltage U(F)
1.6 V
- Reverse leakage current I(r)
20 mA
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- Mounting type
Enclosure
- I(FSM) 50Hz
475 A
- I(FSM) 60Hz
500 A
- Reverse recovery time T(rr)
1000 ns
- Type
VS-T40HFL100S05
- Casing
D-55
Documents & Downloads
Datasheet
Datasheet 597085 Vishay Standard diode VS-T40HFL100S05 D 55 1000 V 40 A
User & Safety Instructions
User & Safety Instructions 597085 Vishay Standard diode VS-T40HFL100S05 D 55 1000 V 40 A
Description
Hints
The delivery may differ from the manufacturer data sheet and therefore does not include connection screws, as their length depends on the respective application. The screws of suitable length with spring ring and disc are to be ordered separately.
