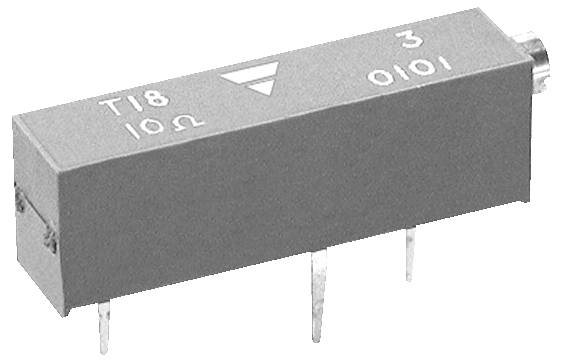

Vishay T18103KT10 Cermet trimmer linear 0.75 W 10 kΩ 1 pc(s)
Part number:
Item no:
Product type
Cermet trimmer
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.75 W
Operation type
side
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Technical specifications
- ESD Packaging: No ESD
- Series T18
- Design: Vertical
- Axle: Slot
- Resistance value 10 kOhm
- Resistance unit: KOhm
- Resistance value_1: 10
- Resistance tolerance: ±10 %
- Resistance curve: Linear
- Rated output: 0.75 W
- Max voltage 400 V
- Breakdown voltage (RMS) 1,000 V
- Temperature coefficient, typ.: 70 ppm/°
- Insulation resistance 10^3 MOhm
- Climate category: 55/125/4
- Confirmation: Lateral
- Product type
Cermet trimmer
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.75 W
- Cut-off voltage
400 V
- Operation type
side
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
70 ppm/°C
- Tolerance ±
10 %
- Width
4.8 mm
- Height
11.7 mm
- CS
2.54 mm
- Dim
(L x W x H) 19.0 x 4.8 x 11.7 mm
- Content
1 pc(s)
- Type
T18103KT10
- RoHS-compliant
Yes
- Length
19.0 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523635 Vishay T18103KT10 Cermet trimmer linear 0.75 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523635 Vishay T18103KT10 Cermet trimmer linear 0.75 W 10 kΩ 1 pc(s)
Description
Cermet trimmer T18 0.75W
This text is machine translated.
This text is machine translated.
Features
- • Power of 0.75W at 70°C.
- • Tests according to CECC 41000 or IEC 60393-1
- • Industrial quality
