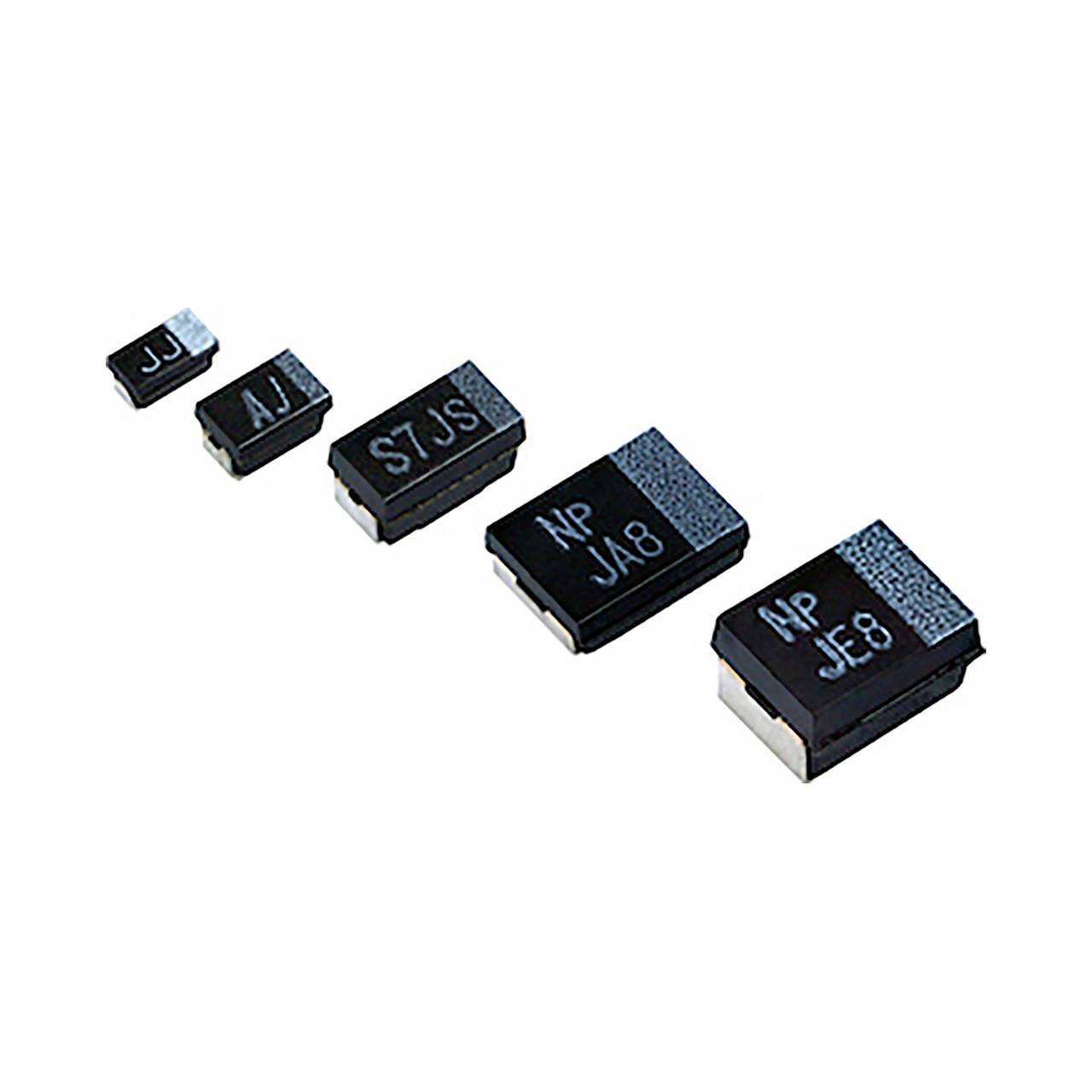

Vishay T55B226M010C0070 Tantalum capacitor SMD 22 µF 10 V 20 % (L x W x H) 3.5 x 2.8 x 1.9 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Tantalum capacitor
Type
SMD
Capacity (elec.)
22 µF
Nominal voltage
10 V
Datasheet (PDF)
Highlights & Details
Vishay tantalum polyester capacitor 22UF 10V 3.5x2.8x2.1
Our service for you
Technical specifications
- MSL 3 - 1 W AT ≤30°C/60%RH
- Series: T55
- Name: VPolyTan
- Design_1: B
- Applications: Decoupling, smoothing, filtering; large energy storage in wireless cards, infrastructure equipment; storage and networking; computer motherboards; smartphones and tablets
- Mounting type_1: SMD
- Delivery form_1: Taped
- Characteristics_1: • VPolyTanTM High-performance polymer tantalum capacitors
- • Extremely low ESR
- • 100% surge current tested
- • Accelerated voltage conditioning
- • High ripple current capability
- • Stable capacity via operating temperature, voltage and frequency range
- • No wear effect
- • Contact material for housing C, J , P: 100% tin
- • Contact material for housing A, T, B, Z, V, D Ni/Pd/Au
- • Compatible with 'High Volume' automatic mounting devices
- • Humidity sensitivity level 3
- Capacity 22 µF
- Capacity_1: 22
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 8%
- Ripple current 1.36 A
- Equivalent Series Resistance (ESR): 70 mOhm
- Nominal voltage DC 10 V
- Lifetime_1: 2,000 h
- Capacitor type low ESR
- Packaging type
Tape
- Product type
Tantalum capacitor
- Type
SMD
- Capacity (elec.)
22 µF
- Nominal voltage
10 V
- Tolerance ±
20 %
- Length
3.5 mm
- Width
2.8 mm
- Height
1.9 mm
- Content
1 pc(s)
- Dim
(L x W x H) 3.5 x 2.8 x 1.9 mm
- RoHS-compliant
Yes
- Type
T55B226M010C0070
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3466105 Vishay T55B226M010C0070 Tantalum capacitor SMD 22 µF 10 V 20 % (L x W x H) 3.5 x 2.8 x 1.9 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3466105 Vishay T55B226M010C0070 Tantalum capacitor SMD 22 µF 10 V 20 % (L x W x H) 3.5 x 2.8 x 1.9 mm 1 pc(s) Tape
Description
PolyTantalum T55 series
