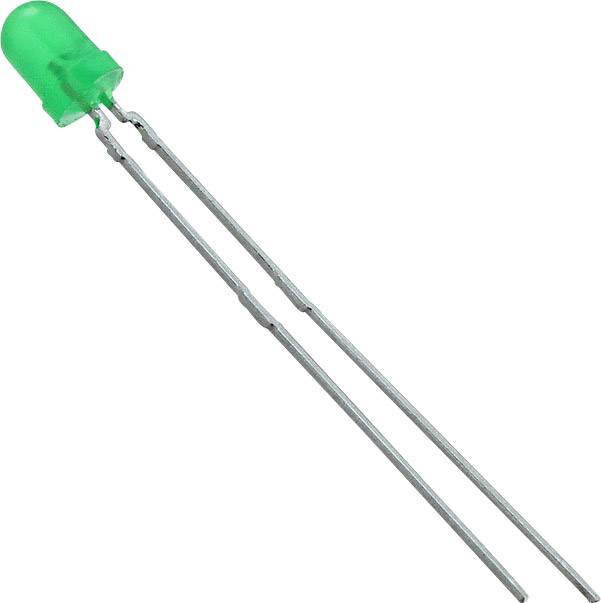

Vishay TLLG4400 LED wired Green Circular 3.2 mm 1.2 mcd 50 ° 7 mA 1.9 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
1.9 V
Forward current I(F)
7 mA
Casing
3.2 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.82
10
7% = € 0.06
€ 0.76
25
11% = € 0.09
€ 0.73
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.82 / piece)
€ 0.82
plus VAT.
14-day return policy included
Technical specifications
- Series: TLLx 440 x
- Product type
LED wired
- Type
TLLG 4400
- Factory colour
Green
- Forward voltage U(F)
1.9 V
- Forward current I(F)
7 mA
- Casing
3.2 mm
- Type
Radial lead
- Light intensity I(V)
1.2 mcd
- Wavelength
565 nm
- Radiation angle
50°
- Type (LEDs)
Diffused
- Technology
GaP
- Lens type
Circular
- Dim
(Ø x L) 3.2 mm x 34.4 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Length
34.4 mm
- (Ø)
3.2 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1125468 Vishay TLLG4400 LED wired Green Circular 3.2 mm 1.2 mcd 50 ° 7 mA 1.9 V
User & Safety Instructions
User & Safety Instructions 1125468 Vishay TLLG4400 LED wired Green Circular 3.2 mm 1.2 mcd 50 ° 7 mA 1.9 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
