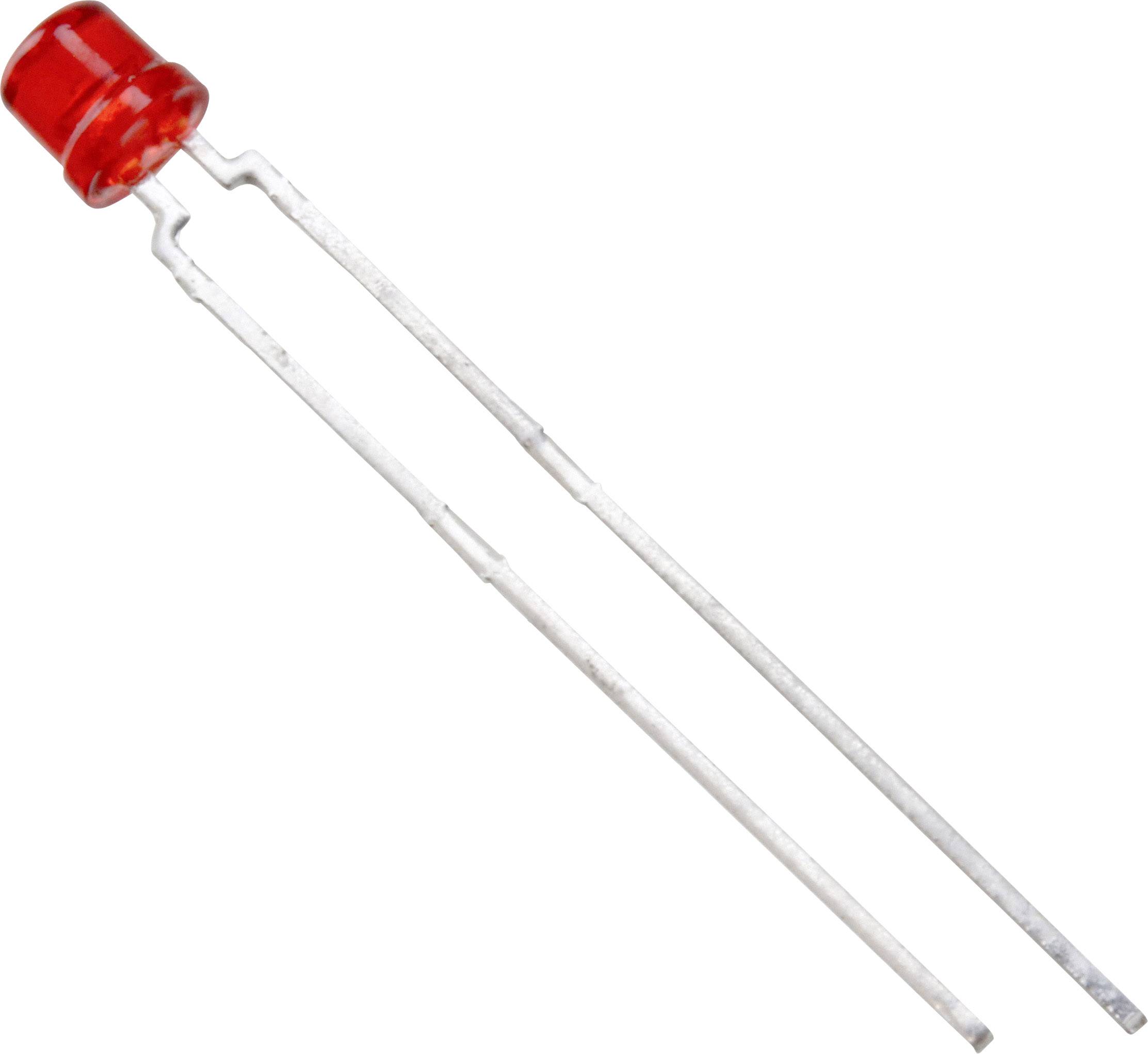

Vishay TLVH4200 LED wired Red Cylindrical 3 mm 55 mcd 170 ° 30 mA 2.4 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2.4 V
Forward current I(F)
30 mA
Casing
3 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.31 / piece)
€ 0.75
-59 %
€ 3.10
plus VAT.
14-day return policy included
Technical specifications
- Series: TLV, 420
- Product type
LED wired
- Type
TLVH4200
- Factory colour
Red
- Forward voltage U(F)
2.4 V
- Forward current I(F)
30 mA
- Casing
3 mm
- Type
Radial lead
- Light intensity I(V)
55 mcd
- Wavelength
635 nm
- Radiation angle
170°
- Type (LEDs)
Water clear
Tinted
- Technology
GaAsP
GaP
- Lens type
Cylindrical
- Dim
(Ø x L) 3.4 mm x 33.08 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Length
33.08 mm
- (Ø)
3.4 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1125491 Vishay TLVH4200 LED wired Red Cylindrical 3 mm 55 mcd 170 ° 30 mA 2.4 V
User & Safety Instructions
User & Safety Instructions 1125491 Vishay TLVH4200 LED wired Red Cylindrical 3 mm 55 mcd 170 ° 30 mA 2.4 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
